Components Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of KIA MOTORS AMERICA, INC.
|
Information

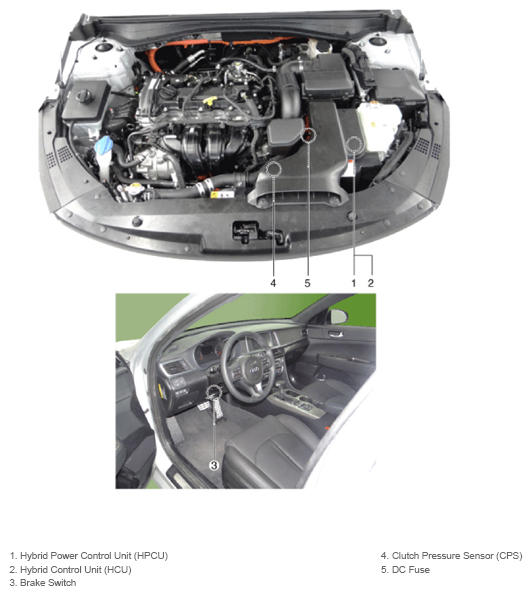

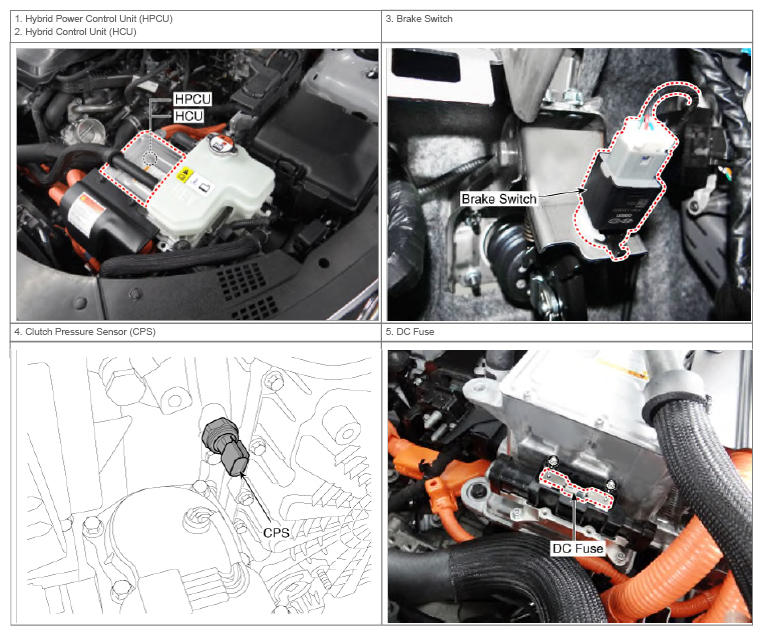

HPCU includes the HCU (Hybrid Control Unit), Inverters (for Drive Motor, HSG and Electric A/C Compressor), MCU (Motor Control Unit) and LDC (Low DC/DC Converter).
Information
For the location of the other control modules, refer to the relevant group.
