Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the lower crash pad.

    (Refer to Body - "CRASH PAD ")

  3. Remove the knee airbag.

    (Refer to Restraint - "AIR BAG MODULE ")

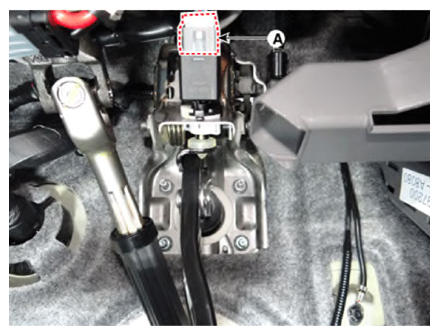

  4. Disconnect the stop lamp switch connector (A).
    G13156924Courtesy of KIA MOTORS AMERICA, INC.

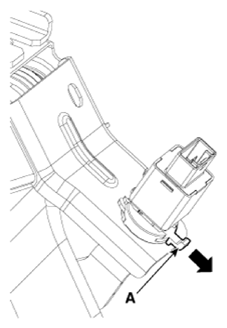

  5. Pull the locking plate (A) as indicated by the arrow.
    G13156925Courtesy of KIA MOTORS AMERICA, INC.

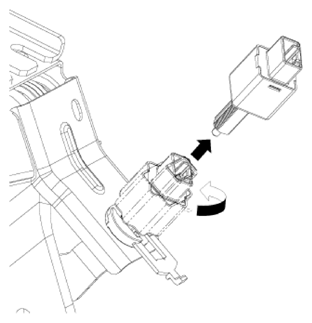

  6. Turn stop lamp switch 45° counterclockwise and remove it.
    G13156926Courtesy of KIA MOTORS AMERICA, INC.
  7. Inspect a removed stop lamp switch along the below procedures.

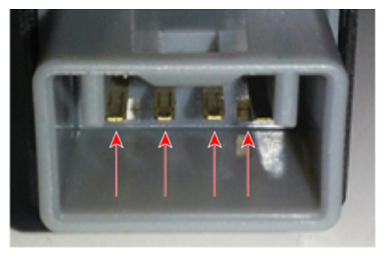

    1. Confirm a normal connection with terminal part
      • A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.
      G13156927Courtesy of KIA MOTORS AMERICA, INC.

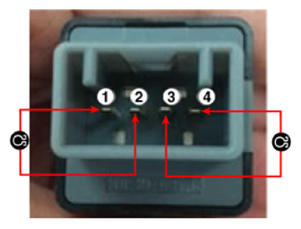

    2. Perform the inspection of parts resistance
      G13156928Courtesy of KIA MOTORS AMERICA, INC.
      Resistance (Ω) 3-4 1-2
      Plunger depressed (switch turned OFF) Infinite 0
      Plunger released (switch turned On) 0 Infinite
