Repair Procedures: Replacement
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative (-) battery terminal.
- Remove the main crash pad assembly.
(Refet to Body - "MAIN CRASH PAD ASSEMBLY ")

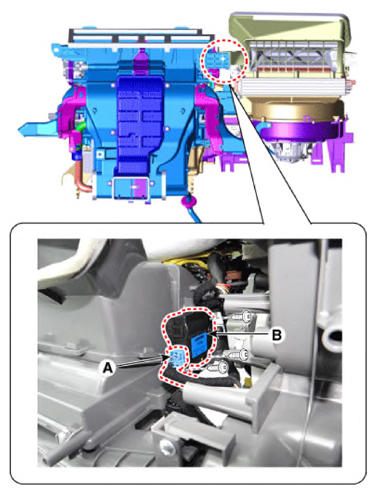

- Disconnect the connector (A) and then remove the intake actuator (B) after loosening the screws.
- Install in the reverse order of removal.
