Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative (-) battery terminal.
- Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
- Remove the knee airbag module.
(Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

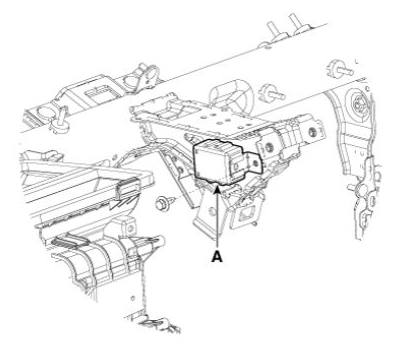

- Disconnect the connector of the immobilizer unit and then remove the immobilizer unit (A) after loosening a bolt.
