Repair Procedures: Inspection: Notes

WARNING: This page is about a different variant/trim than selected.

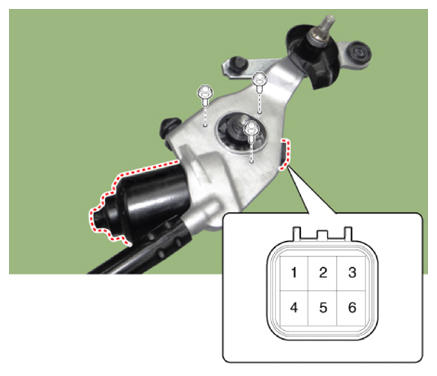

  1. Remove the connector from the wiper motor.
    G13158611Courtesy of KIA MOTORS AMERICA, INC.
  2. Attach the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 5.
    No. Description
    1 -
    2 -
    3 battery
    4 High speed
    5 GND
    6 Low speed
    G13158612Courtesy of KIA MOTORS AMERICA, INC.
    G13158613Courtesy of KIA MOTORS AMERICA, INC.
