Section 264 (Air Conditioning System (PHEV))
›
Electric A-C Compressor
›
Components & Components Location
›
Components
Components & Components Location: Components
WARNING:
This page is about a different variant/trim than selected.

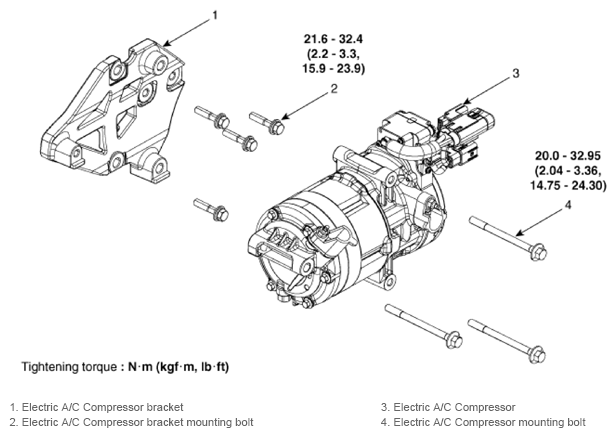

Fig 1: Exploded View Of Electric A-C Compressor Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
