Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.

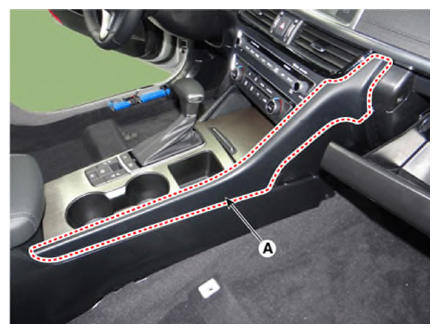

  2. Using a screwdriver or remover, remove the front console garnish (A).
    G13158758Courtesy of KIA MOTORS AMERICA, INC.

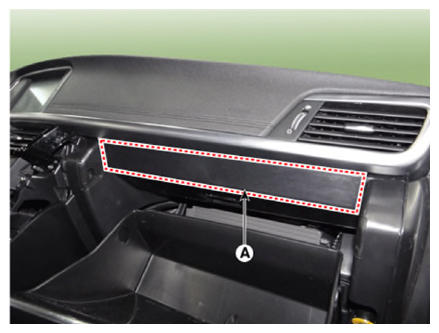

  3. Using a screwdriver or remover, remove the glove box cap (A).
    G13158759Courtesy of KIA MOTORS AMERICA, INC.

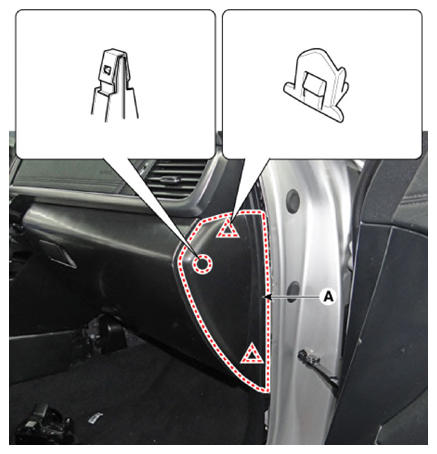

  4. Using a screwdriver or remover, remove the crash pad side cover [RH] (A).
    G13158760Courtesy of KIA MOTORS AMERICA, INC.

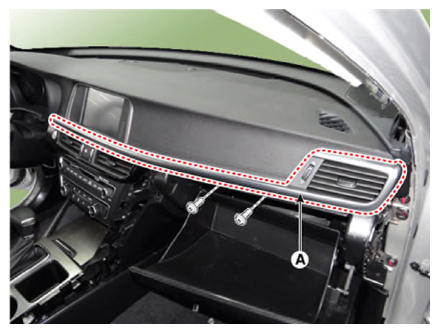

  5. Remove the crash pad garnish [RH] (A) after loosening the screws.
    G13158761Courtesy of KIA MOTORS AMERICA, INC.

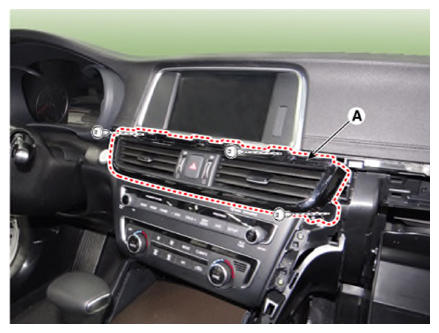

  6. Remove the center fascia panel (A) after loosening the screws.
    G13158762Courtesy of KIA MOTORS AMERICA, INC.

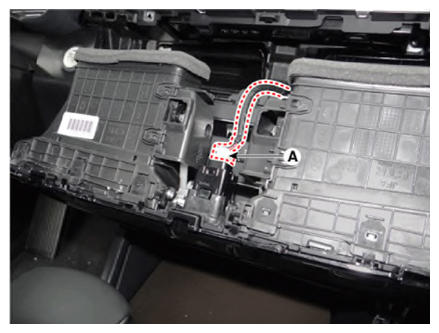

  7. Disconnect the hazard switch connector (A).
    G13158763Courtesy of KIA MOTORS AMERICA, INC.

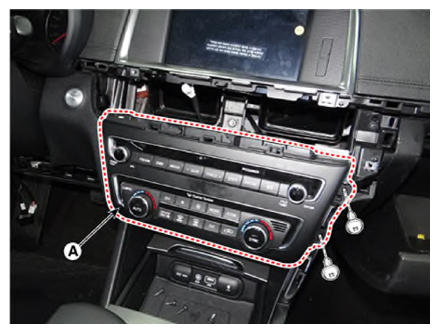

  8. Remove the center fascia lower panel (A) after loosening the screws.
    G13158764Courtesy of KIA MOTORS AMERICA, INC.

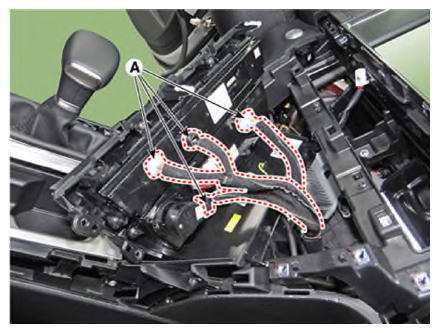

  9. Disconnect the heater & A/C control unit connectors (A).
    G13158765Courtesy of KIA MOTORS AMERICA, INC.

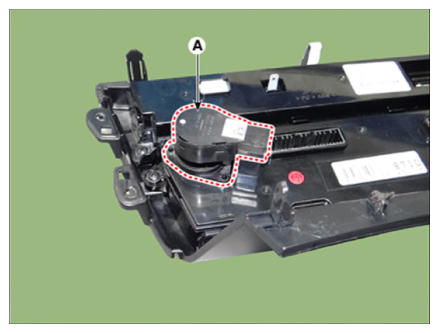

  10. Remove the in car sensor (A) by pressing the locking pin.
    G13158766Courtesy of KIA MOTORS AMERICA, INC.
  11. Install in the reverse order of removal.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips.
