Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative (-) battery terminal.
- Remove the right front seat assembly.
(Refer to Body - "FRONT SEAT ASSEMBLY ")

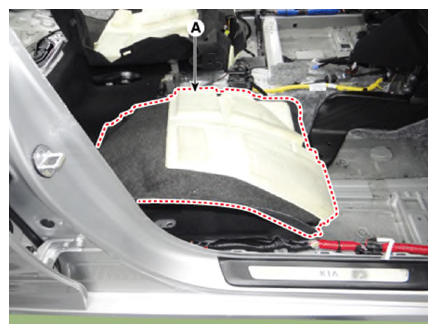

- Separate the right floor carpet (A).

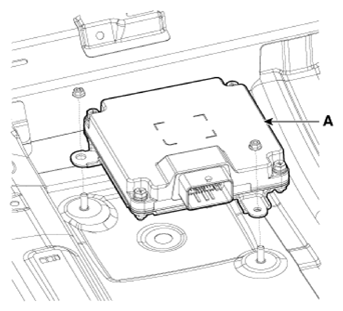

- Remove the SVM unit (A) after loosening the mounting the nuts.
