Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

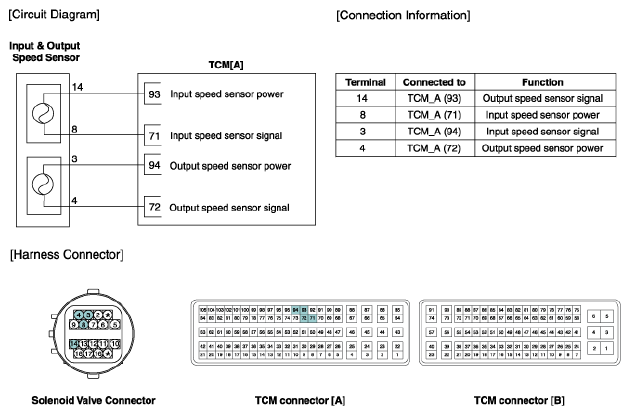

G13077831Courtesy of KIA MOTORS AMERICA, INC.
