FOB Status Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

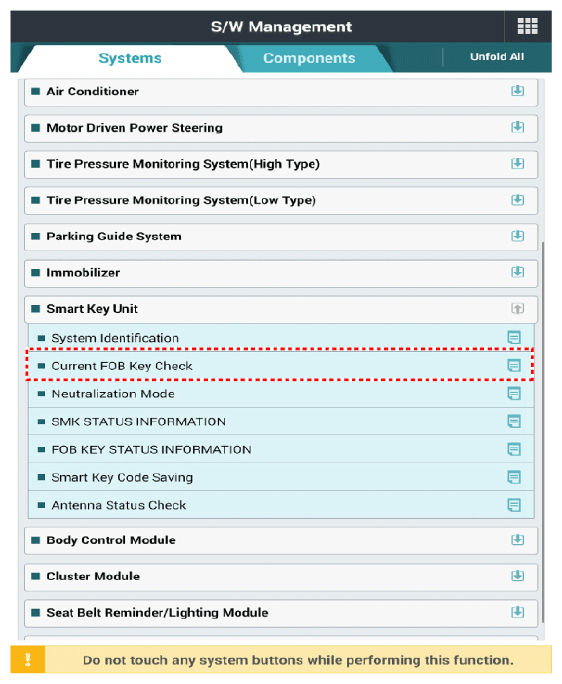

G13081052Courtesy of KIA MOTORS AMERICA, INC.

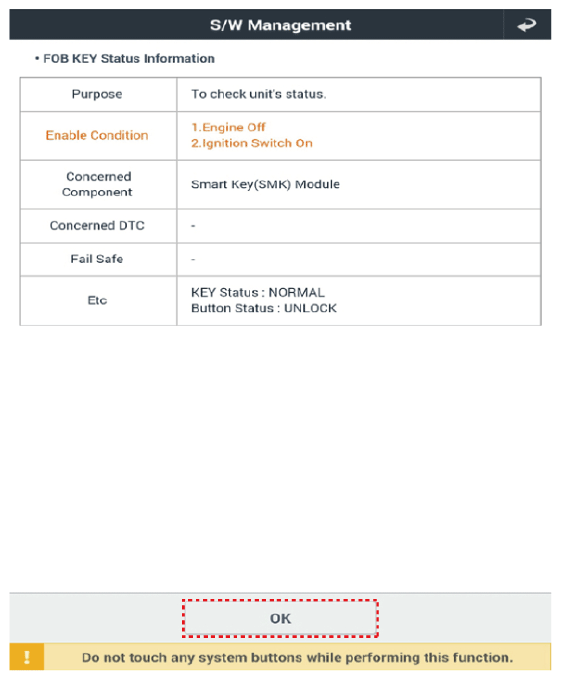

G13081053Courtesy of KIA MOTORS AMERICA, INC.

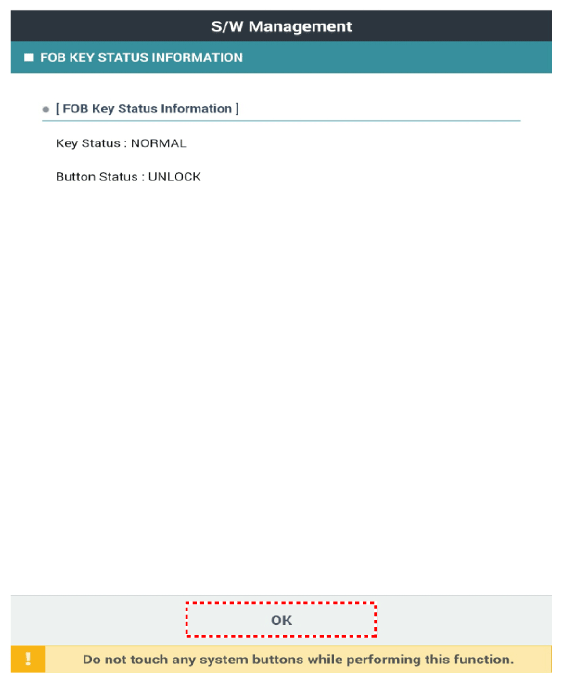

G13081054Courtesy of KIA MOTORS AMERICA, INC.
