Repair procedures: Removal

Disconnect the battery negative (-) cable.
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

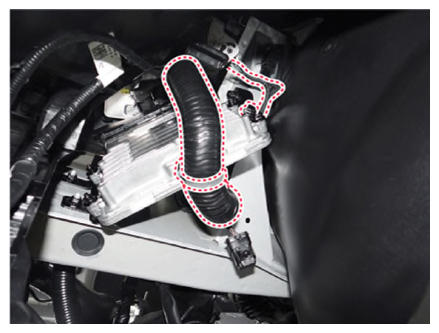

Remove the wiring from the TCM bracket.

Courtesy of KIA MOTORS AMERICA, INC.

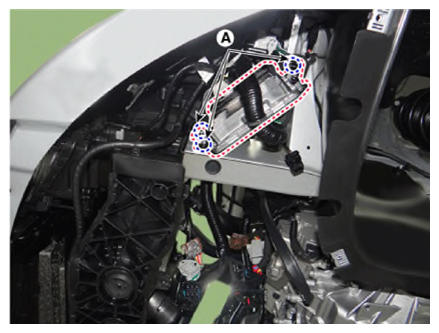

Loosen the TCM mounting nut (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the TCM connector.

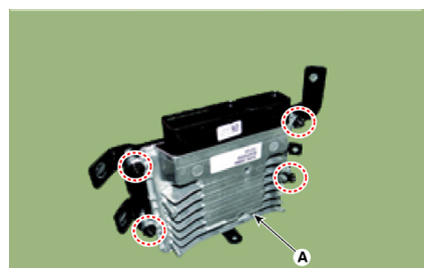

Remove the TCM from the bracket by loosening the nuts.
