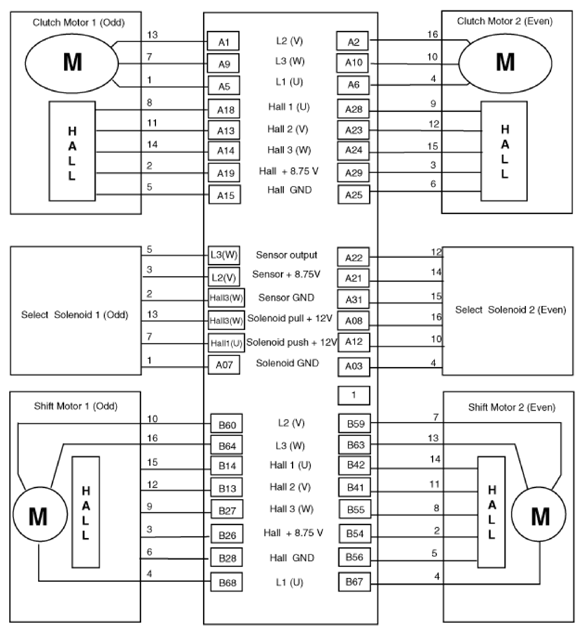

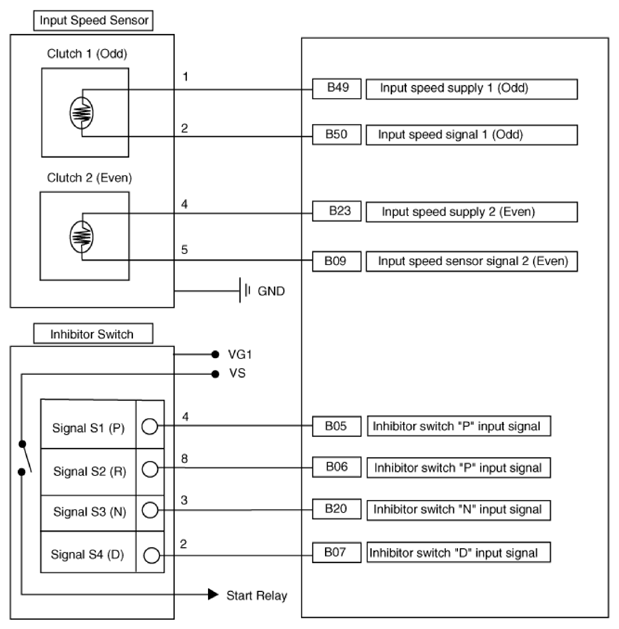

Home › Kia › 2019 › Optima EX › Repair and Diagnosis › Transmission › Transmission Control Systems › Dual Clutch Transmission Control System - 1.6L (Except HEV) › DCT Control Module (TCM) › Schematic Diagrams › Circuit Diagram
