Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

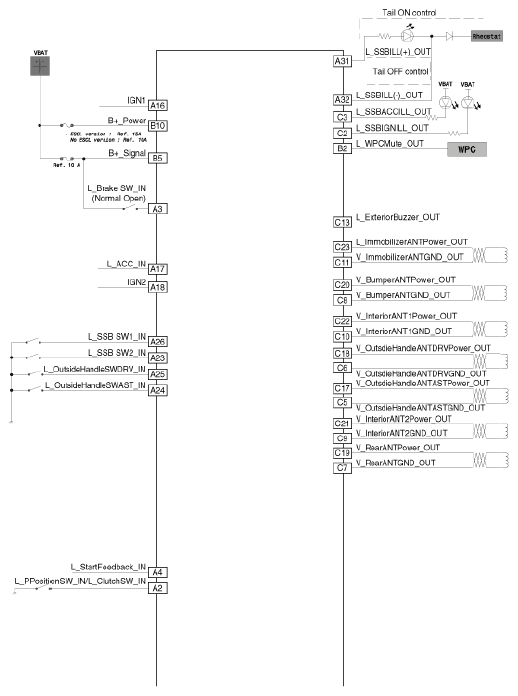

G13081017Courtesy of KIA MOTORS AMERICA, INC.
G13081018Courtesy of KIA MOTORS AMERICA, INC.
