Repair Procedures: Removal: Notes

CAUTION: Put on gloves to protect your hands.

NOTE: Use seat covers to avoid damaging any surfaces.

Remove the roof side molding.
(Refer to "ROOF SIDE MOLDING ")
Remove the C pillar garnish.
(Refer to "C PILLAR GARNISH ")

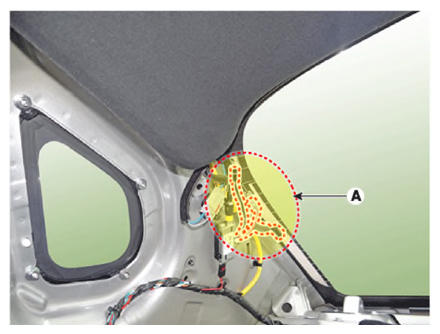

Disconnect the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Spread the WD-40 on the side of rear window glass.

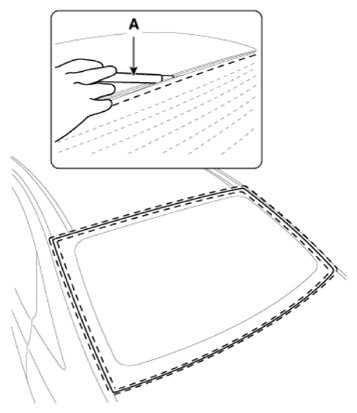

Cut out the adhesive using the cutter (A).
Information
- Please use the cutter with a blade length between 8-12 inches.
Courtesy of KIA MOTORS AMERICA, INC.

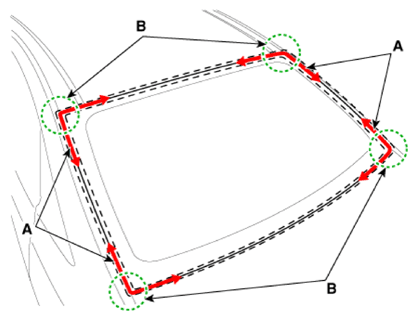

Cut off the sealant on the edge (B) while pulling the piano wire (A) left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Courtesy of KIA MOTORS AMERICA, INC.

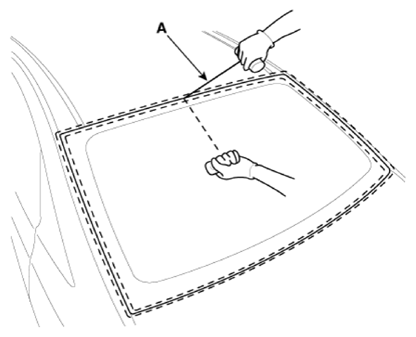

If a piano wire is visible inside the chassis, pull the piano wire (A) line inside.

Courtesy of KIA MOTORS AMERICA, INC.

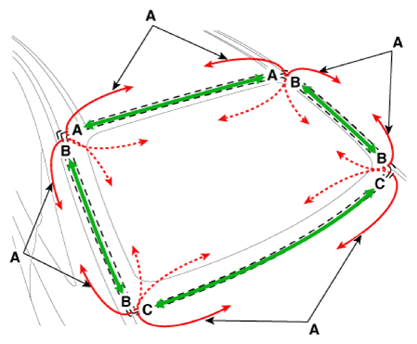

Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear window glass (A).
NOTE:
- When removing and installing the rear window glass, an assistant is necessary.
Courtesy of KIA MOTORS AMERICA, INC.
