Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the purge control solenoid valve connector and vapor hoses.

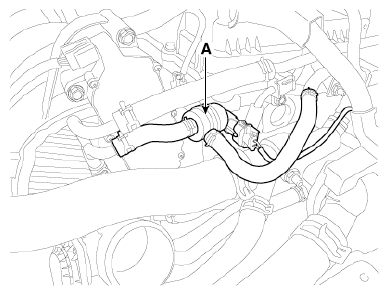

  3. Remove the purge control solenoid valve (A).
G12932833Courtesy of KIA MOTORS AMERICA, INC.
