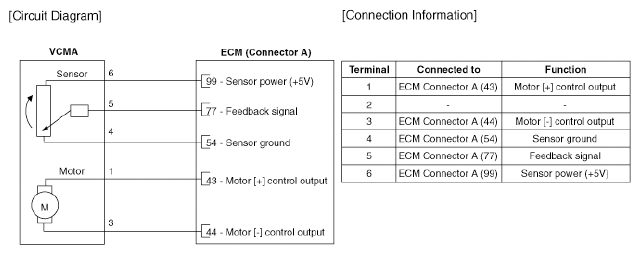

Home › Kia › 2019 › Optima S › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L (Except HEV) › Variable Charge Motion Actuator (VCMA) › Schematic Diagrams › Circuit Diagram › Notes
