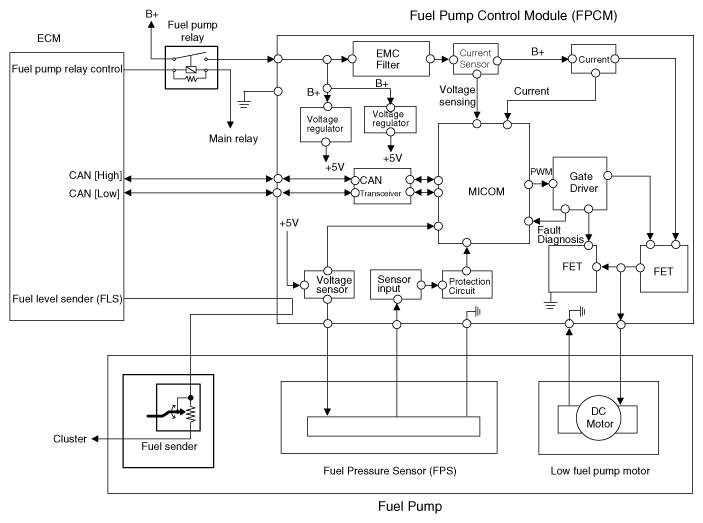

Home › Kia › 2019 › Optima S › Repair and Diagnosis › Engine Performance › Fuel Delivery › Fuel Delivery System - 2.4L (Except HEV) › Fuel Pump Control Module (FPCM) › Schematic Diagrams › Circuit Diagram
