Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the air duct and air cleaner assembly. (Refer to Engine Mechanical System - "AIR CLEANER ")

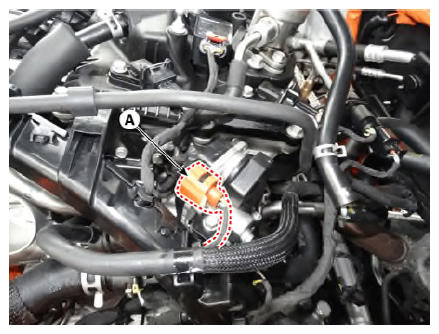

- Disconnect the EEGR control valve connector (A).

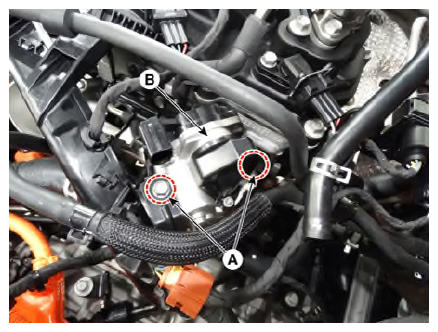

- Remove the EEGR control valve (B) after removing the mounting bolt (A).
