Multifunction Switch Inspection

WARNING: This page is about a different variant/trim than selected.

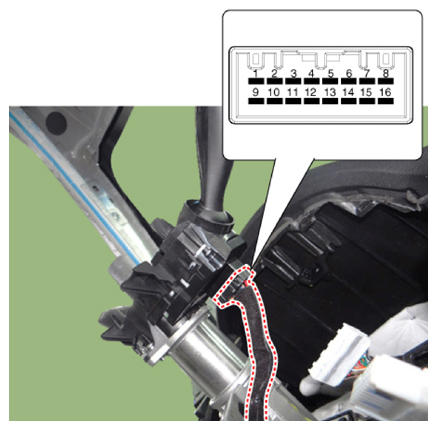

Check for continuity between the terminals in each switch position according to the table.

Courtesy of KIA MOTORS AMERICA, INC.

Switch	Switch position	Switch terminal	Resistance (Ω, ±3.5%)
Wiper switch	MIST	1-9	330
	OFF		∞
	Intermittent (AUTO)		800
	LOW		1, 800
	HIGH		5, 700
Wiper intermittent volume	Volume 1	7-9	330
	Volume 2		690
	Volume 3		1, 310
	Volume 4		2, 610
	Volume 5		7, 310
Fog lamp switch	OFF	9-10	∞
	Front foglamp		910
	Rear foglamp		2, 910
Turn signal switch	OFF	9-12	∞
	Left		910
	Right		2, 910
Dimmer & Passing switch	OFF	9-13	∞
	Passing		910
	Dimmer		2, 910
Light switch	OFF	9-14	∞
	AUTO/DRL		680
	Tail lamp		1, 680
	Low beam		5, 580
