Repair Procedures: Installation: Notes
WARNING: This page is about a different variant/trim than selected.
- Remove the Ignition from the vehicle.
- Disconnect the battery negative terminal and wait for at least thirty seconds before beginning work.

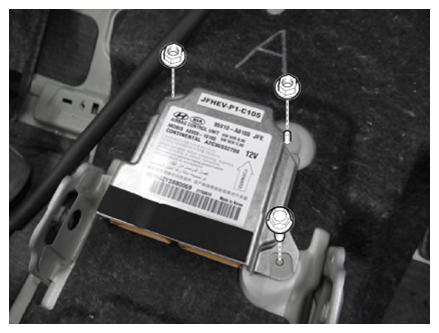

- Install the SRSCM with the SRSCM mounting bolt (A) and nuts (B).
Tightening torque :
7.8 - 11.7 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.6 lb.ft)
- Connect the SRSCM harness connector.
- Install the floor console.
(Refer to Body - "FLOOR CONSOLE ")
- Reconnect the battery negative terminal.
- After installing the SRSCM, confirm proper system operation:
Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
