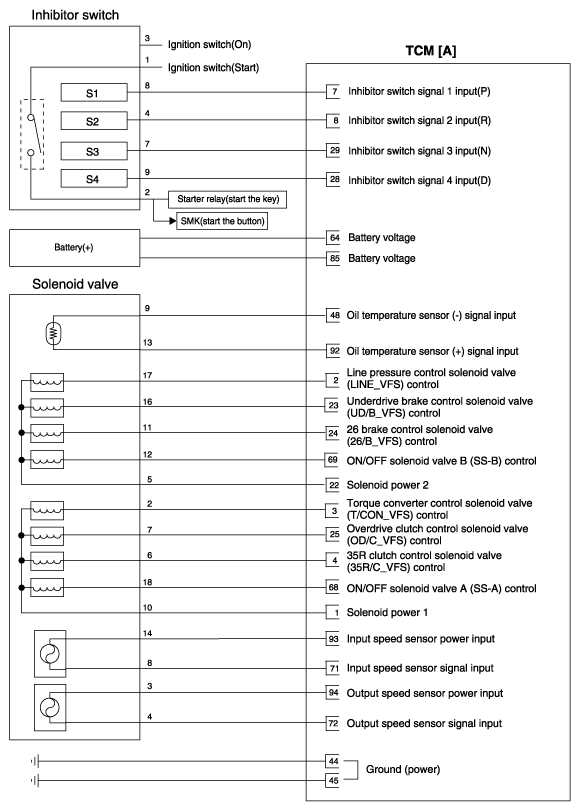

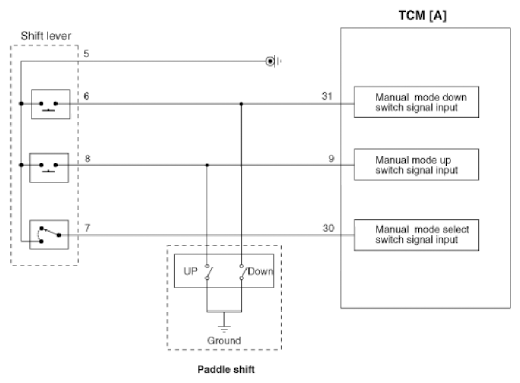

Home › Kia › 2019 › Optima S › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle Control System - 2.4L (Except HEV) › Transaxle Control Module (TCM) › Schematic Diagrams › Circuit Diagram
