Home › Kia › 2019 › Optima SX Limited › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L (Except HEV) › Fuel Tank Pressure Sensor (FTPS) › Repair Procedures › Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the fuel tank.

    (Refer to "FUEL TANK ")

  3. Disconnect the fuel tank pressure sensor connector.

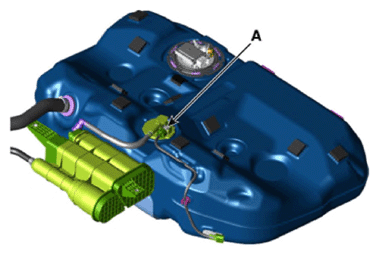

  4. Disconnect the fuel tank pressure sensor (A).
G12922340Courtesy of KIA MOTORS AMERICA, INC.
