Components Location

WARNING: This page is about a different variant/trim than selected.

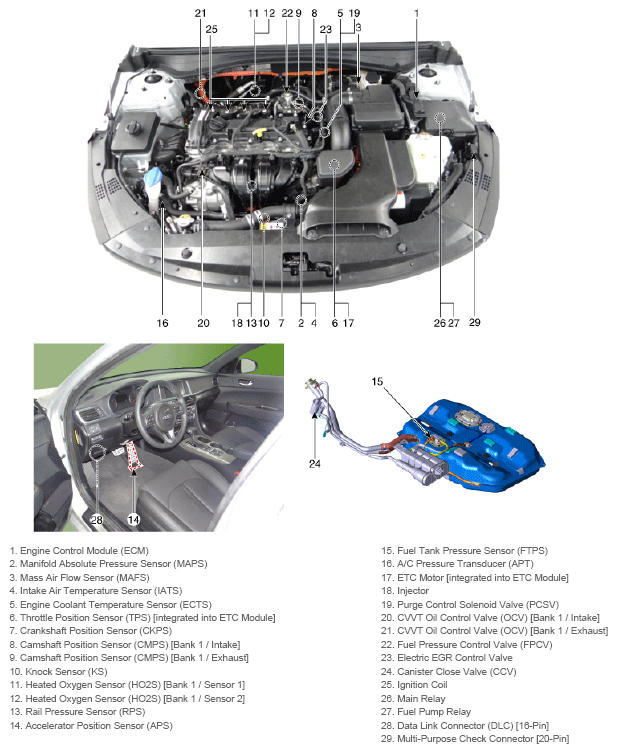

G13077558Courtesy of KIA MOTORS AMERICA, INC.

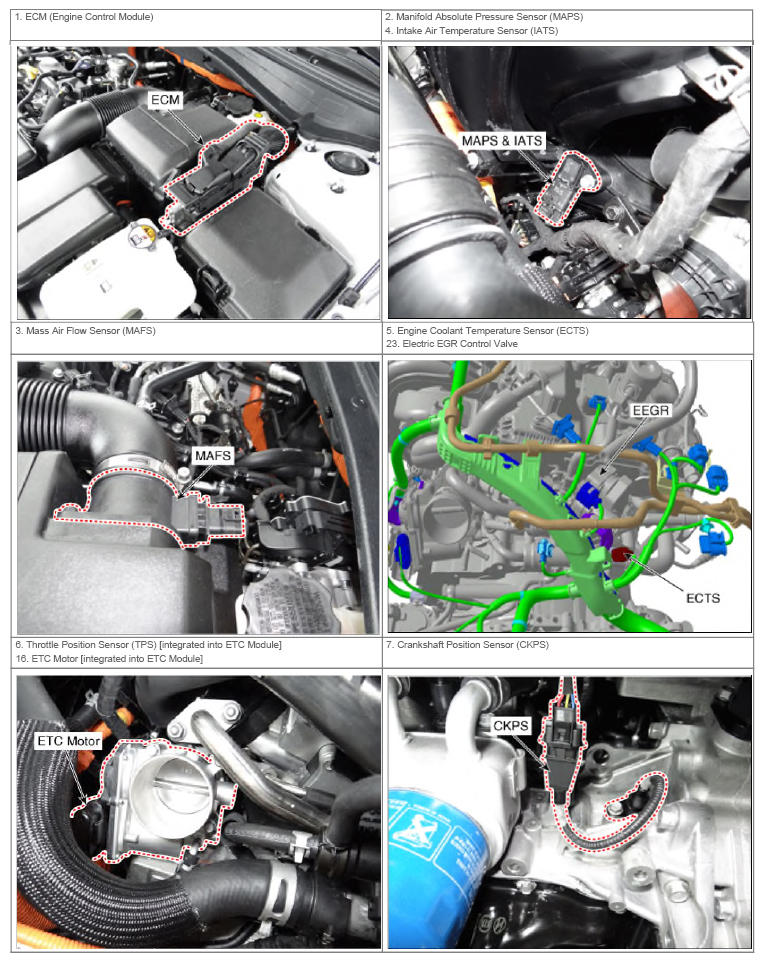

G13077559Courtesy of KIA MOTORS AMERICA, INC.

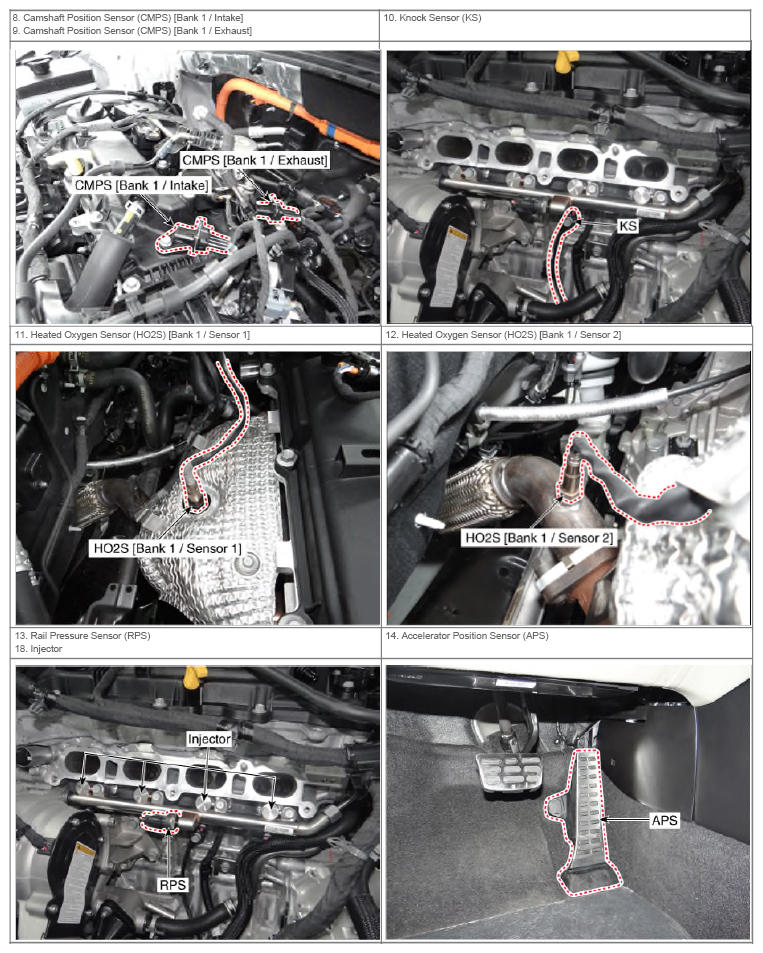

G13077560Courtesy of KIA MOTORS AMERICA, INC.

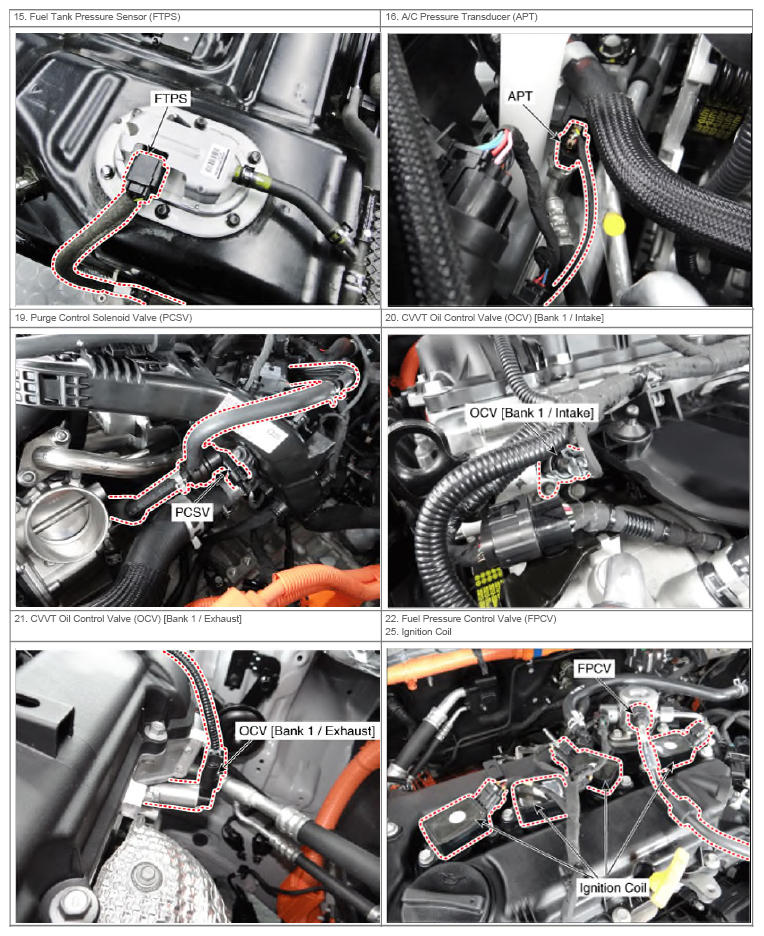

G13077561Courtesy of KIA MOTORS AMERICA, INC.

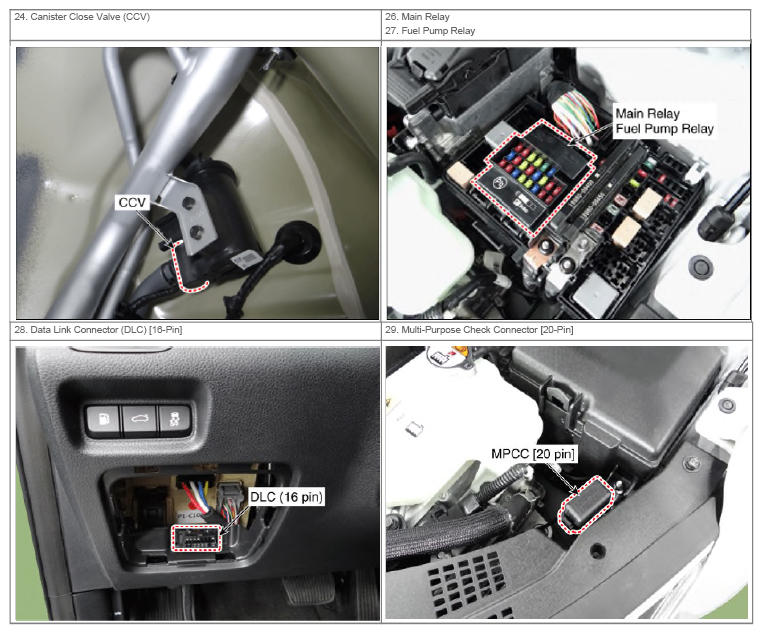

G13077562Courtesy of KIA MOTORS AMERICA, INC.
