Cluster Module Variant Coding

WARNING: This page is about a different variant/trim than selected.
  1. Verify vehicle options and have VIN code in hand.
  2. Perform "CLU Variant Coding" in the "Vehicle S/W Management" with KDS.
  3. Check for DTCs in the system.
    G13162215Courtesy of KIA MOTORS AMERICA, INC.

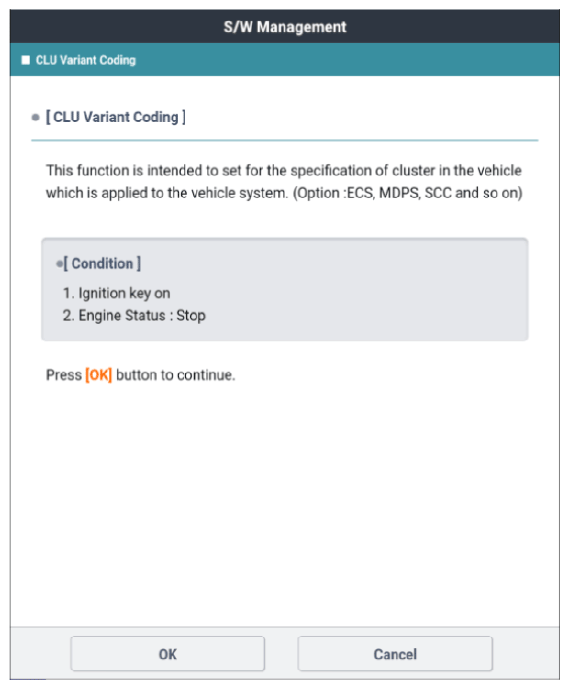

    G13162216Courtesy of KIA MOTORS AMERICA, INC.

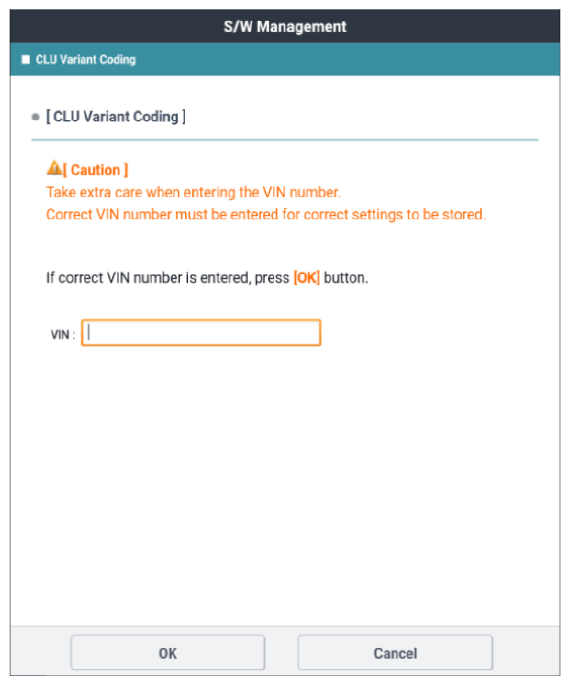

    G13162217Courtesy of KIA MOTORS AMERICA, INC.

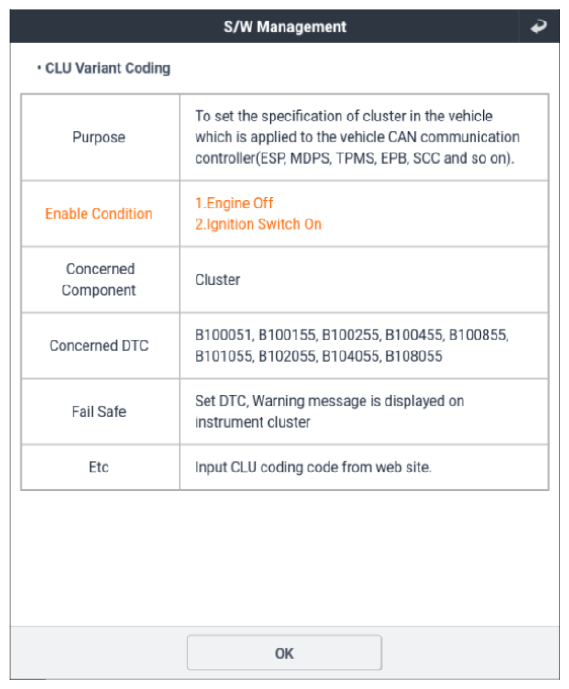

    G13162218Courtesy of KIA MOTORS AMERICA, INC.

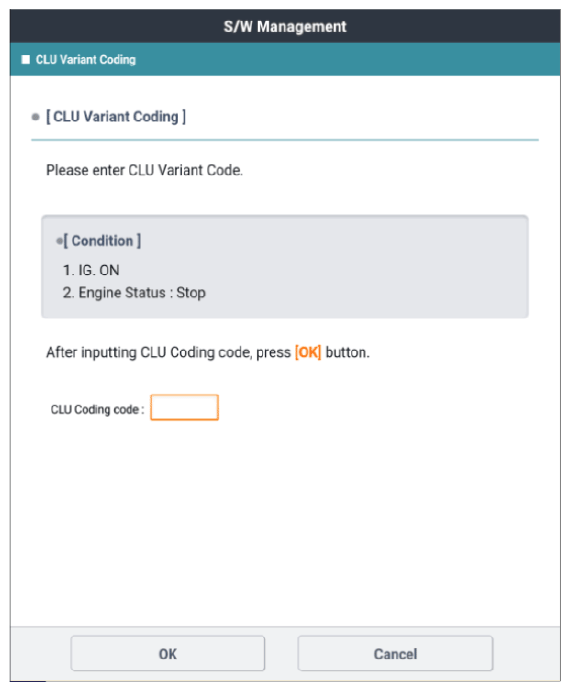

    G13162219Courtesy of KIA MOTORS AMERICA, INC.

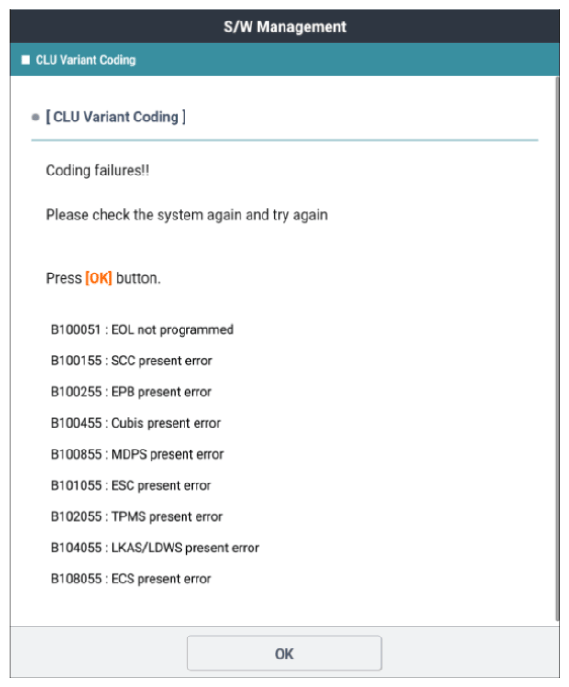

    G13162220Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the DTCs stored in the system as a present?

    YES

    • Replace cluster module and perform "CLU Variant Coding" procedure in the "Vehicle S/W Management" with KDS again, and then, go to "VERIFICATION OF REPAIR " procedure.

    NO
