Vehicle S/W Management
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON"
|
- Connect KDS/GDS to Data Link Connector (DLC).

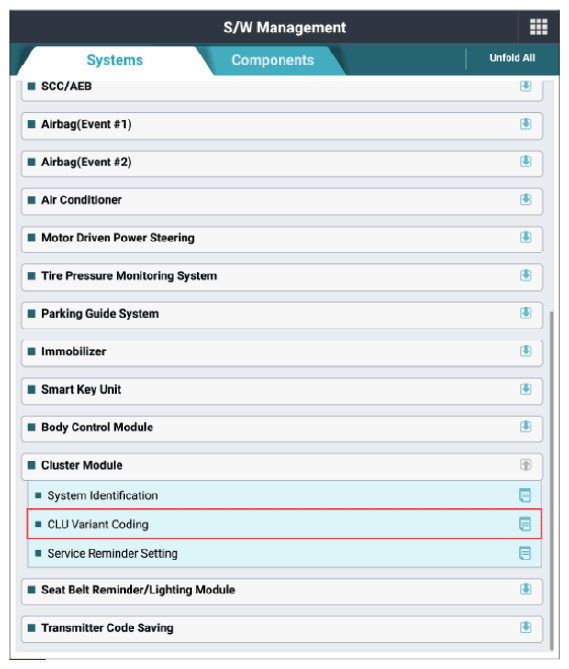

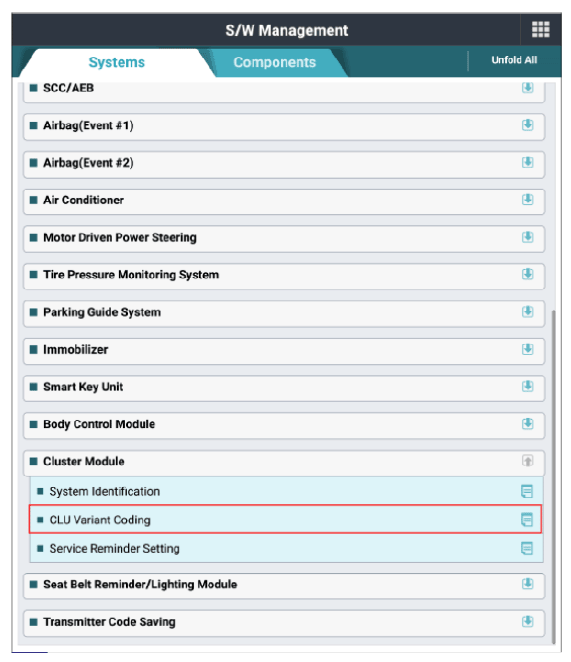

- Perform "Vehicle S/W Management" of concerned component with KDS/GDS.
|
Fig.1 to 2 below
Fig.3 to 5 below |
CAUTION:

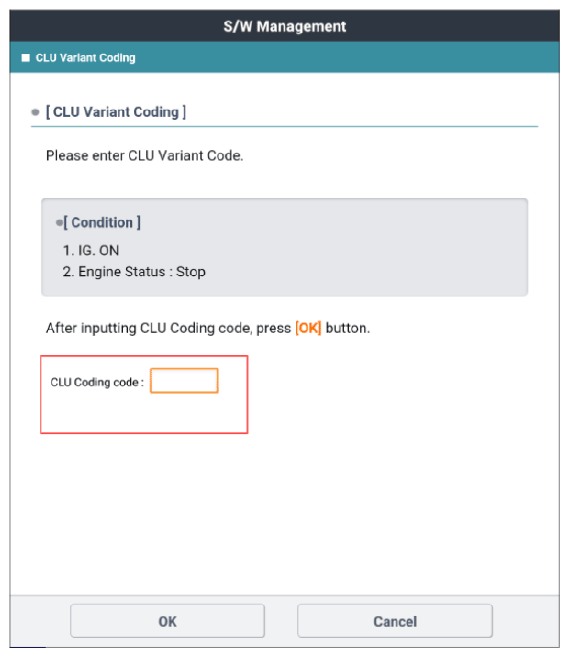

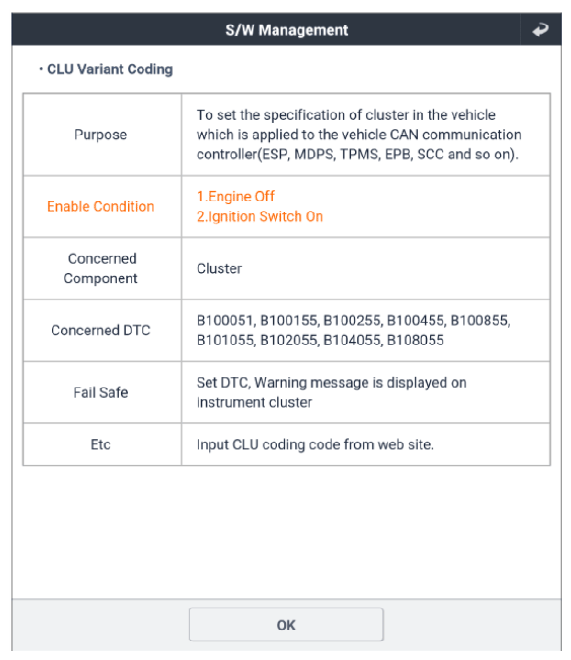

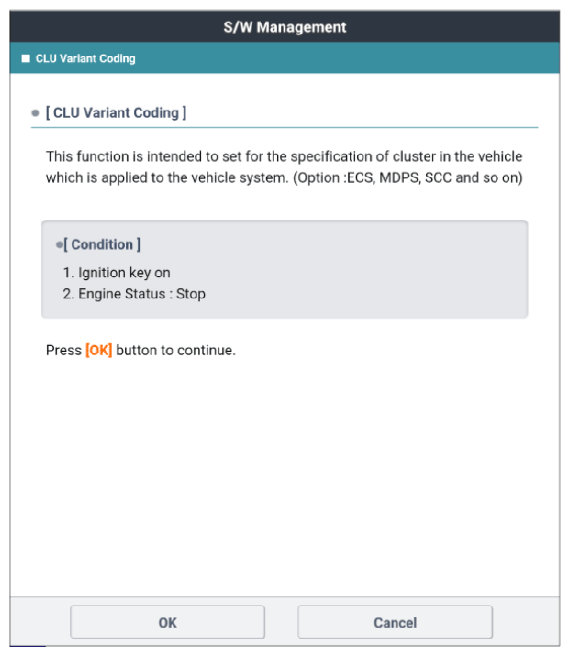

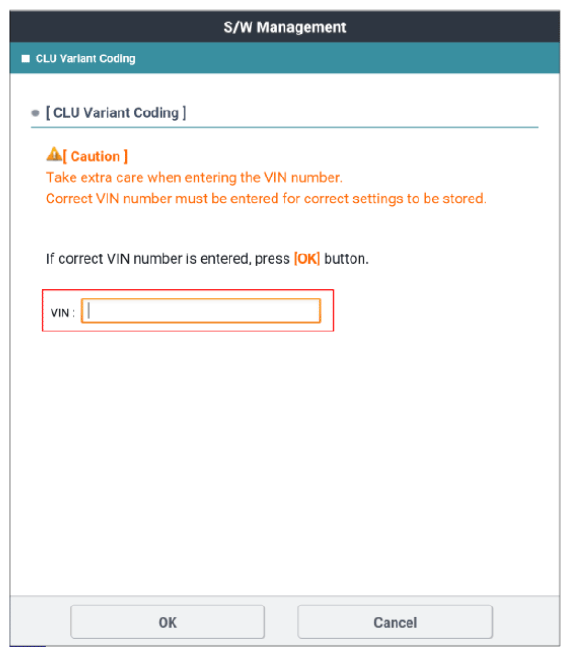

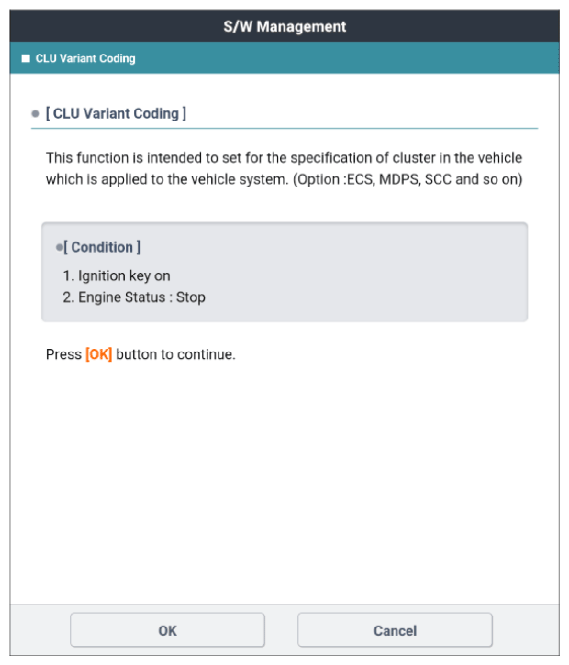

Using KDS/GDS performs the "Vehicle S/W Management" - "CLU Variant Coding" item. The DTC is erased when programming is properly performed.
