Vehicle S/W Management
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Connect KDS/GDS to Data Link Connector (DLC).
- Perform "Vehicle S/W Management" of concerned component with KDS/GDS.
|

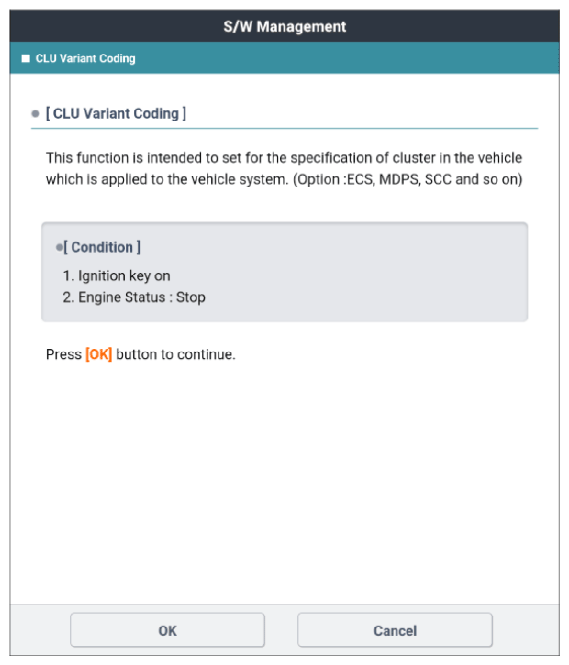

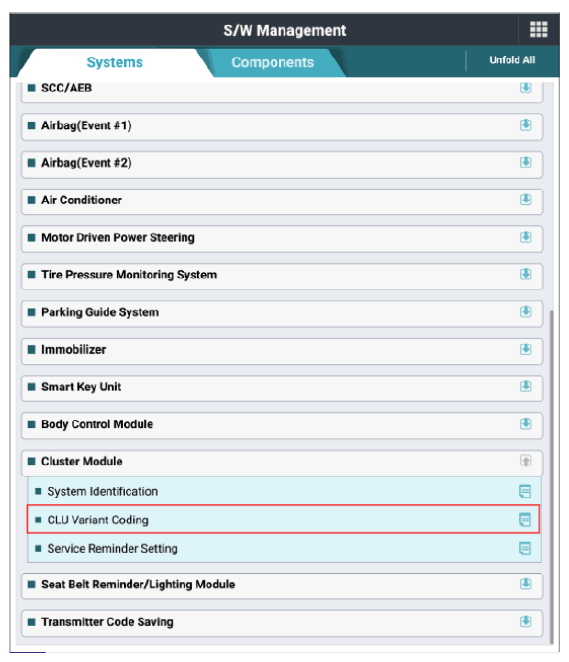

Fig.1 to 2 below

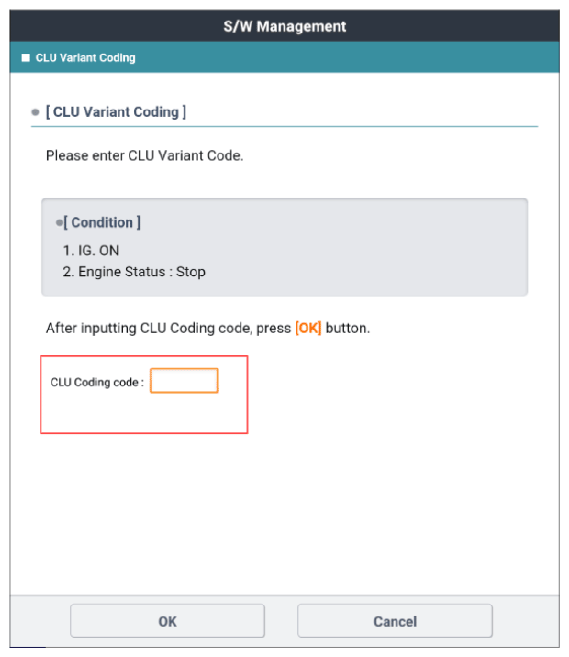

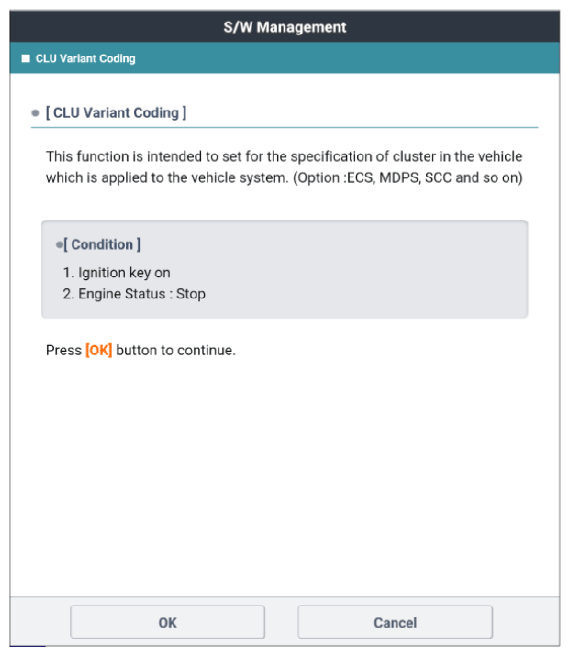

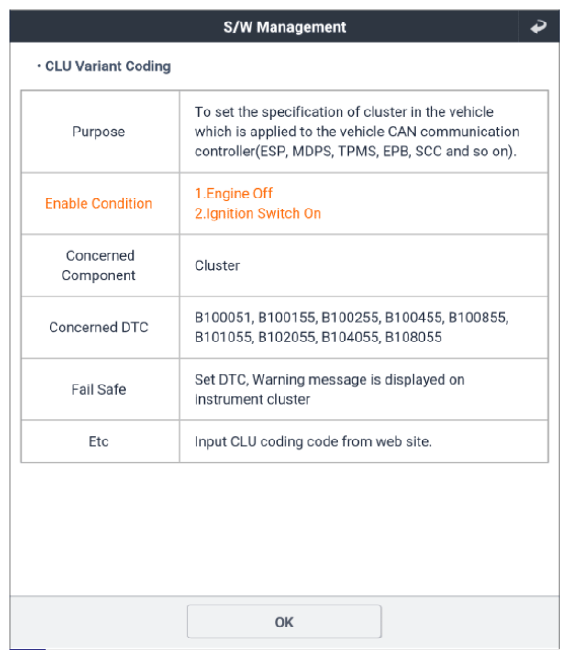

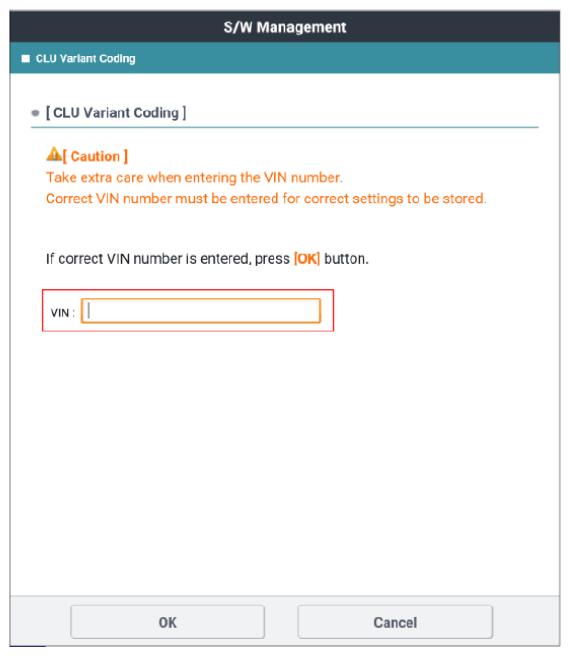

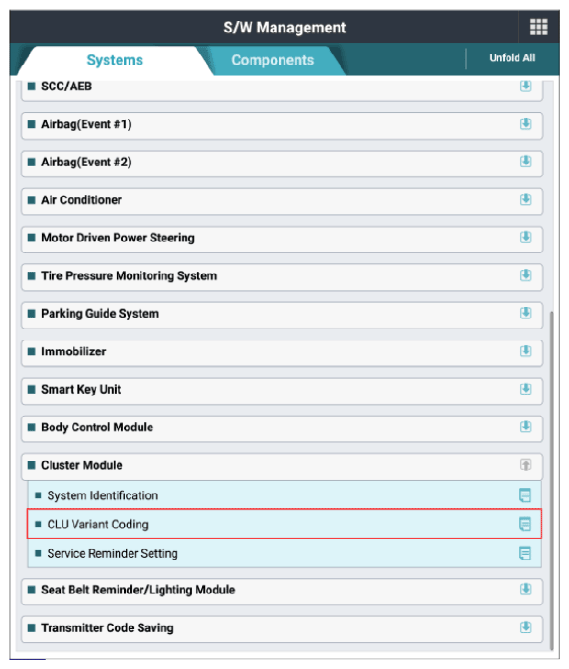

Fig.3 to 5 below |
CAUTION:
Using KDS/GDS performs the "Vehicle S/W Management" - "CLU Variant Coding" item. The DTC is erased when programming is properly performed.
