Repair Procedures: Inspection

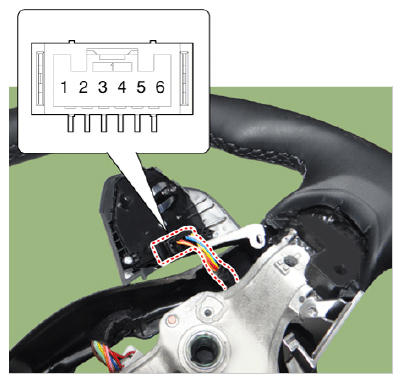

Check for resistance between terminals in each switch position (RH).

Courtesy of KIA MOTORS AMERICA, INC.

Switch	Connector terminal	Resistance (±3%)
Cancel	2-6	390 Ω
SET -		610 Ω
RES +		910 Ω
Cruise ON/OFF		1.38 kΩ
Cruise & Speed Limit ON/OFF Cruise Mode		2.13 kΩ
