Interior 1 Antenna
- Disconnect the negative (-) battery terminal.
- Remove the heater and A/C control unit.
(Refer to Heating, Ventilation, Air Conditioning - " HEATER & A/C CONTROL UNIT (MANUAL) ")
(Refer to Heating, Ventilation, Air conditioning - " HEATER & A/C CONTROL UNIT (FATC) ")

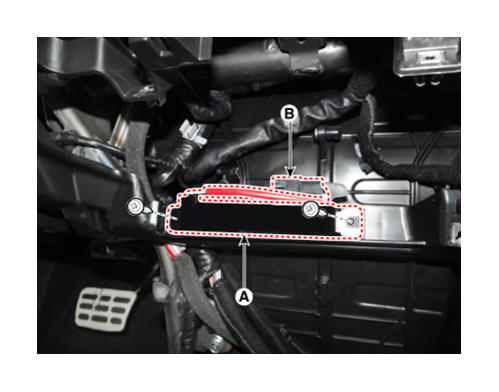

- Remove the interior 1 antenna (A) after loosening the mounting screws and disconnecting the connector (B).
