Assist Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front right door trim.

    (Refer to Body - " FRONT DOOR TRIM  ")

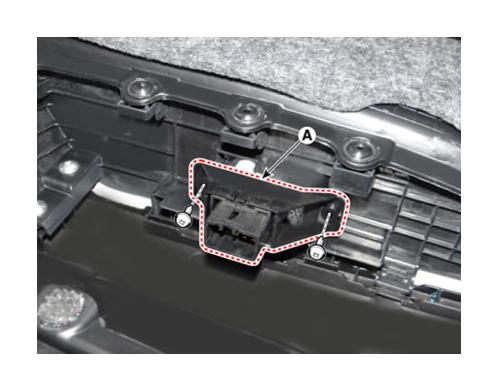

  3. Remove the power window switch assembly (A) after loosening the mounting screws.
    G12580106Courtesy of KIA MOTORS AMERICA, INC.
