Components & Components Location: Components

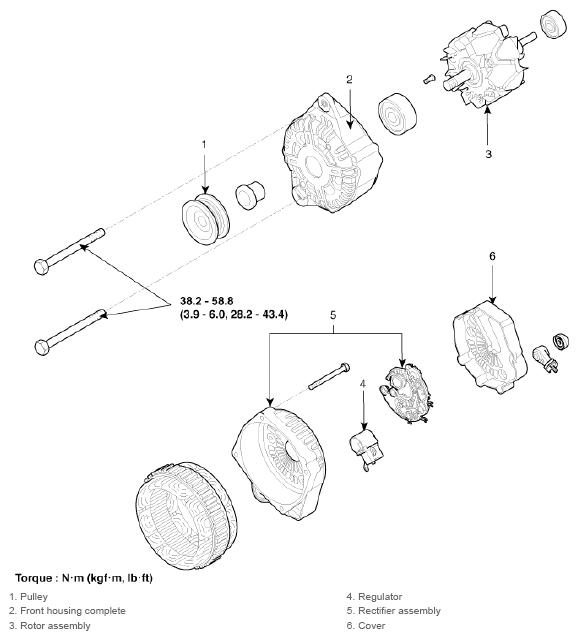

Fig 1: Alternator Components Exploded View Torque Specification
G12576331Courtesy of KIA MOTORS AMERICA, INC.
