Battery Tray
- Remove the battery.
(Refer to Charging System - " BATTERY ")
- Remove the air cleaner.
(Refer to Engine Mechanical System - " AIR CLEANER ")

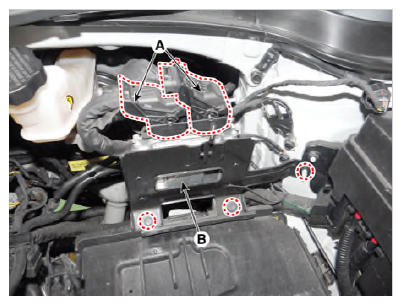

- Disconnect the ECM Connector (A).
- Remove the mounting bolts and nut, and then remove the ECM bracket assembly (B).

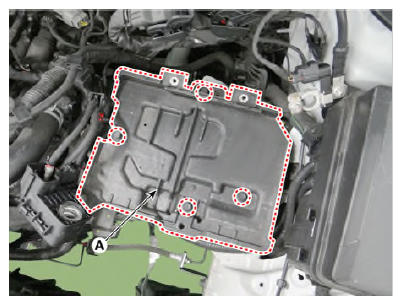

- Remove the battery tray (A) after loosening the mounting bolts
Battery tray mounting bolt:
9.0 - 14.0 N.m (0.9 - 1.4 kgf.m, 6.6 - 10.3 lb.ft)
