Repair Procedures: Removal

1. Remove the front bumper assembly.

   (Refer to Body - " FRONT BUMPER ASSEMBLY  ")

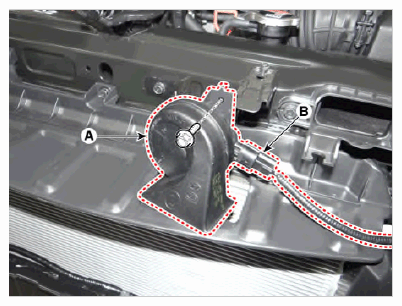

2. Remove the horn (A) after disconnecting the horn connector (B) and loosening the mounting the bolt.

Courtesy of KIA MOTORS AMERICA, INC.
