Home › Kia › 2019 › Rio LX › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Components & Components Location › Components Location

Components Location

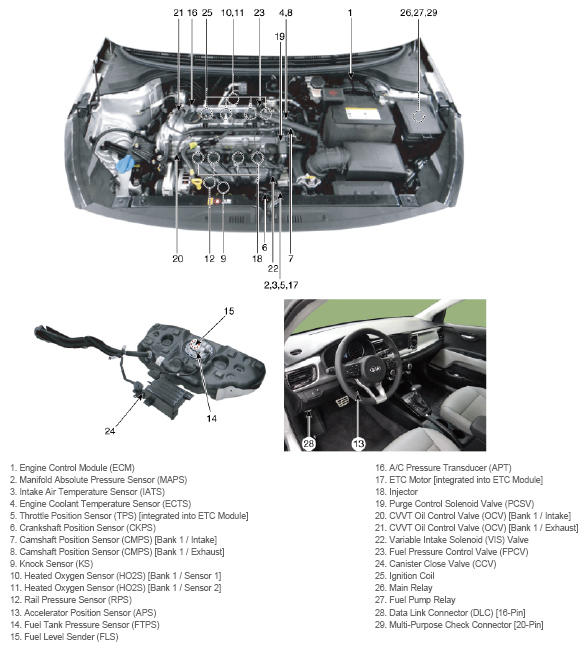

G12576500Courtesy of KIA MOTORS AMERICA, INC.

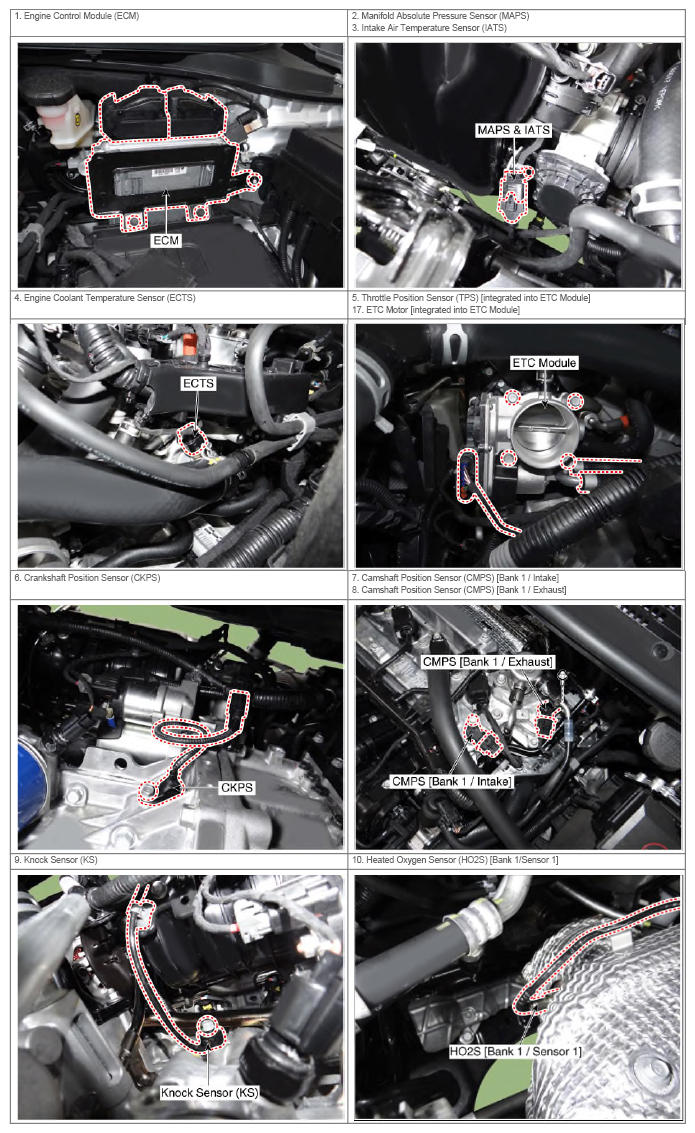

G12576501Courtesy of KIA MOTORS AMERICA, INC.

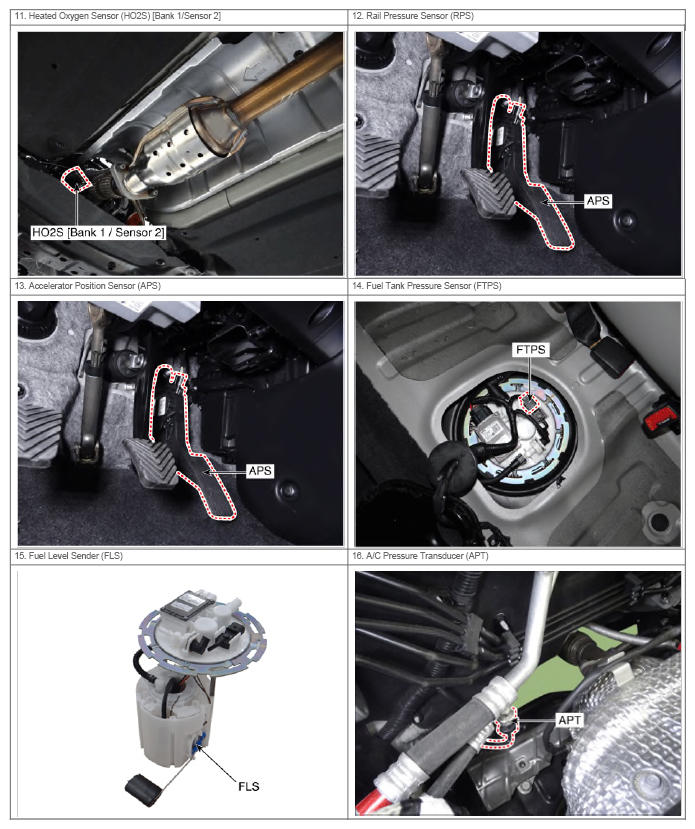

G12576502Courtesy of KIA MOTORS AMERICA, INC.

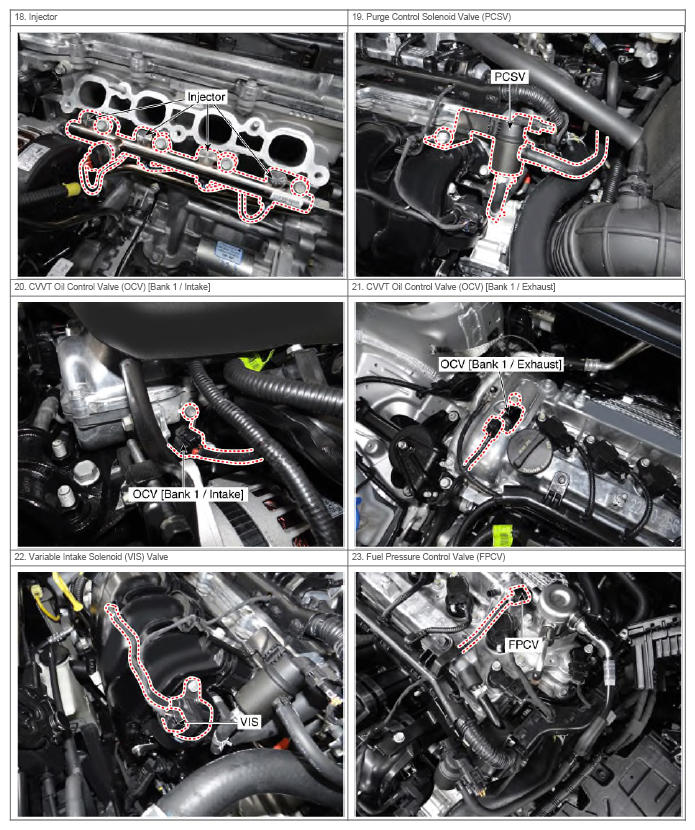

G12576503Courtesy of KIA MOTORS AMERICA, INC.

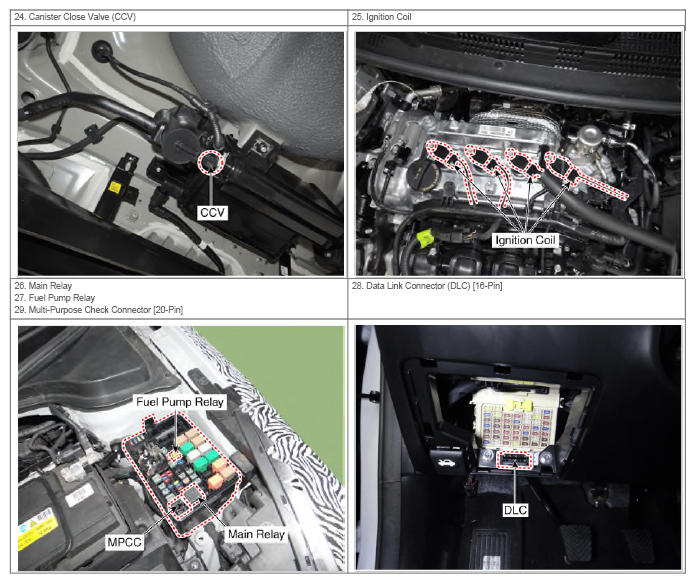

G12576504Courtesy of KIA MOTORS AMERICA, INC.
