Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform

Courtesy of KIA MOTORS AMERICA, INC.

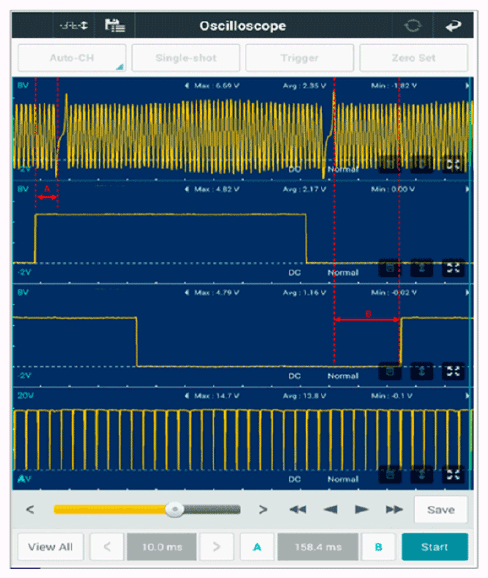

1. CKPS & CMPS synchronization - There are about 5 - 6 teeth between the CKPS missing tooth and CMPS Signal.
2. CKPS & CMPS synchronization - There are about 15 - 16 teeth between the CKPS missing tooth and CMPS Signal.
