[Bank 1 / Sensor 1]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

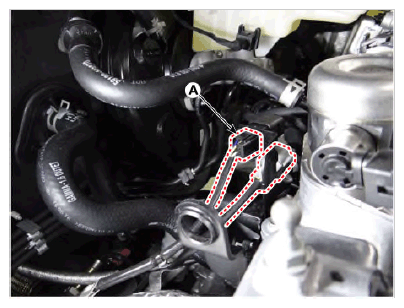

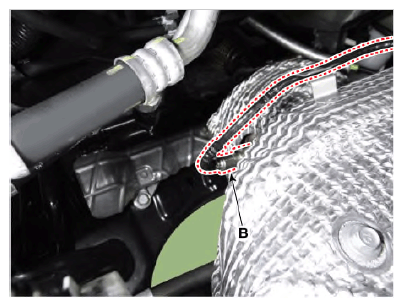

  2. Disconnect the connector (A), and then remove the sensor (B).
    G12576579Courtesy of KIA MOTORS AMERICA, INC.
    G12576580Courtesy of KIA MOTORS AMERICA, INC.
