Repair Procedures: Removal

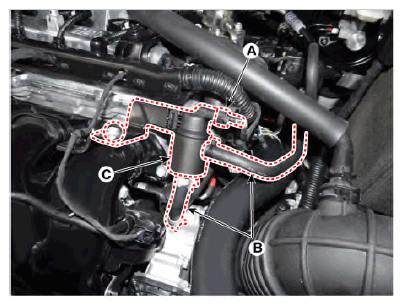

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Disconnect the purge control solenoid valve connector (A).
  3. Disconnect the vapor hoses (B) from the purge control solenoid valve.
  4. Remove the purge control solenoid valve (C).
    G12576629Courtesy of KIA MOTORS AMERICA, INC.
