Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - " FUEL PUMP  ")

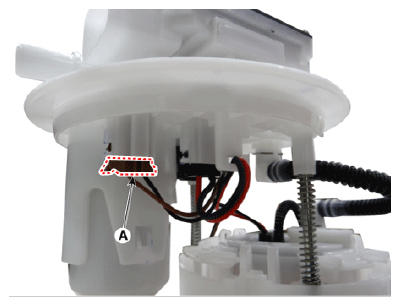

  2. Disconnect the fuel sender connector (A).
    G12576716Courtesy of KIA MOTORS AMERICA, INC.

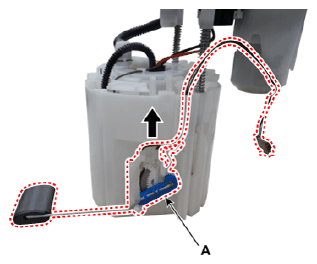

  3. Press the fixing hook with a driver and then remove fuel sender (A) in the arrow direction.
    G12576717Courtesy of KIA MOTORS AMERICA, INC.
    G12576718Courtesy of KIA MOTORS AMERICA, INC.
