Ignition System Check
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

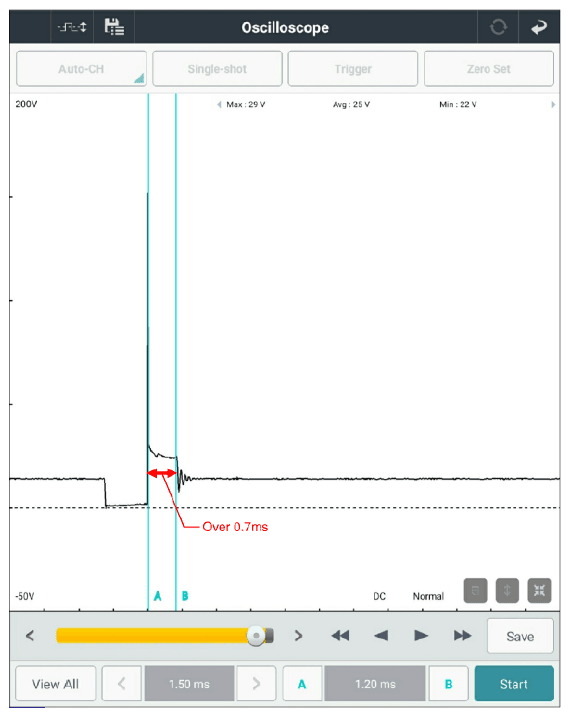

Ignition Coil harness connector | 1 (Control) | Chassis ground | - | figure below. |
| Ignition Coil harness connector | 2 (Power) | Chassis ground | - | ||
Good
- Go to "Compression pressure check" procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the Ignition coil and go to "Verification of Repair " procedure.
