Repair Procedures: Removal

Remove the ignition coil.
(Refer to Ignition System - " IGNITION COIL ")

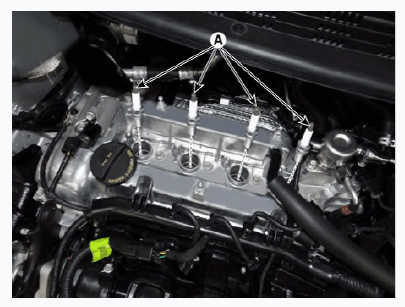

Using a spark plug wrench, remove the spark plug (A).
NOTE:
- Be careful that no contaminates enter into spark plug holes.
Courtesy of KIA MOTORS AMERICA, INC.
