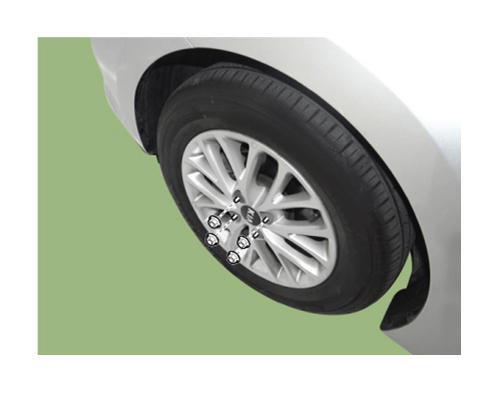

Hub nut tightening sequence
Tighten the hub nuts as follows.
Tightening torque:
107.9 - 127.5 N.m (11.0- 13.0 kgf.m, 79.6- 94.0 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.
 Courtesy of KIA MOTORS AMERICA, INC.
|
CAUTION:
When using an impact gun, final tightening torque should be checked using a torque wrench.
