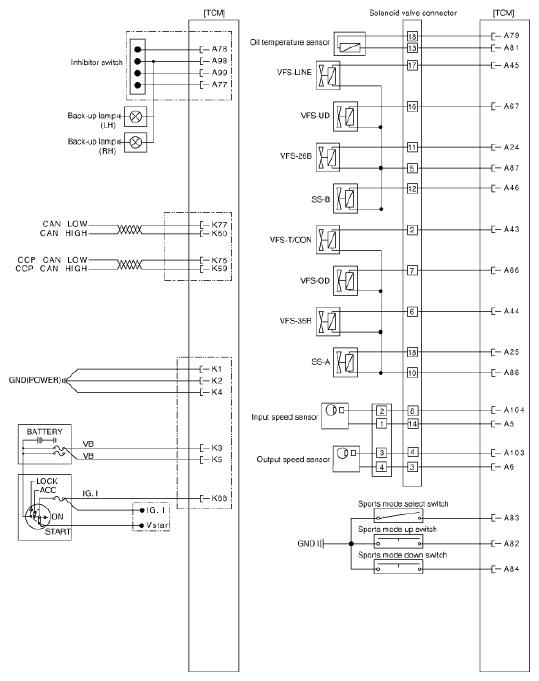

Home › Kia › 2019 › Rio LX › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › Transaxle Control Module (TCM) › Schematic Diagrams › Circuit Diagram
