Component Inspection

Inspection Condition	Inspection Procedure	Reference

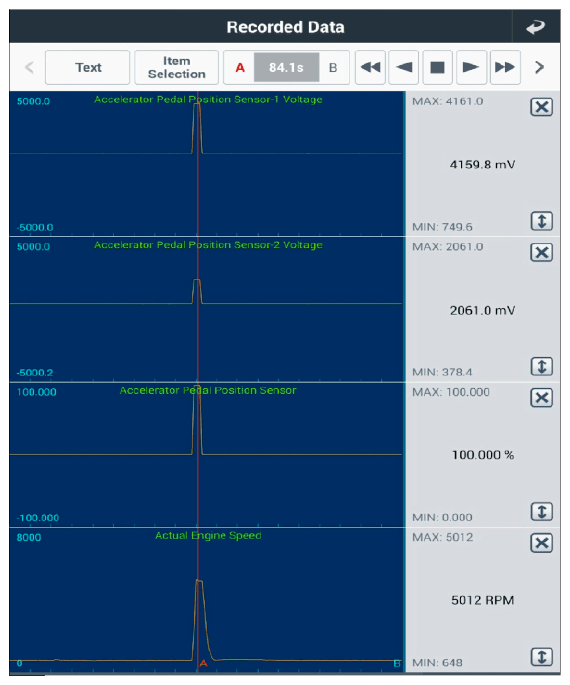

Ignition "ON".	Connect KDS/GDS to Data Link Connector(DLC). Monitor "Diagnostic Trouble Codes(DTC)" with KDS/GDS.	figure below.

G12580385

Courtesy of KIA MOTORS AMERICA, INC.

Accelerator pedal is depressed
Accelerator pedal is not depressed
Good
- Go to "Verification of Repair " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the Accelerator Pedal Sensor and go to "Verification of Repair " procedure.
