Components Location

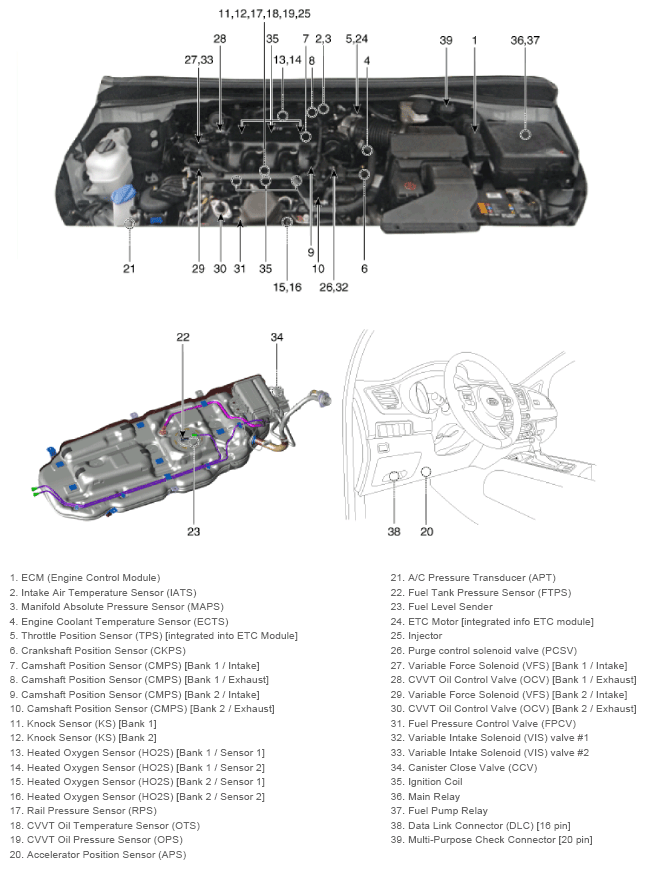

G13044193Courtesy of KIA MOTORS AMERICA, INC.

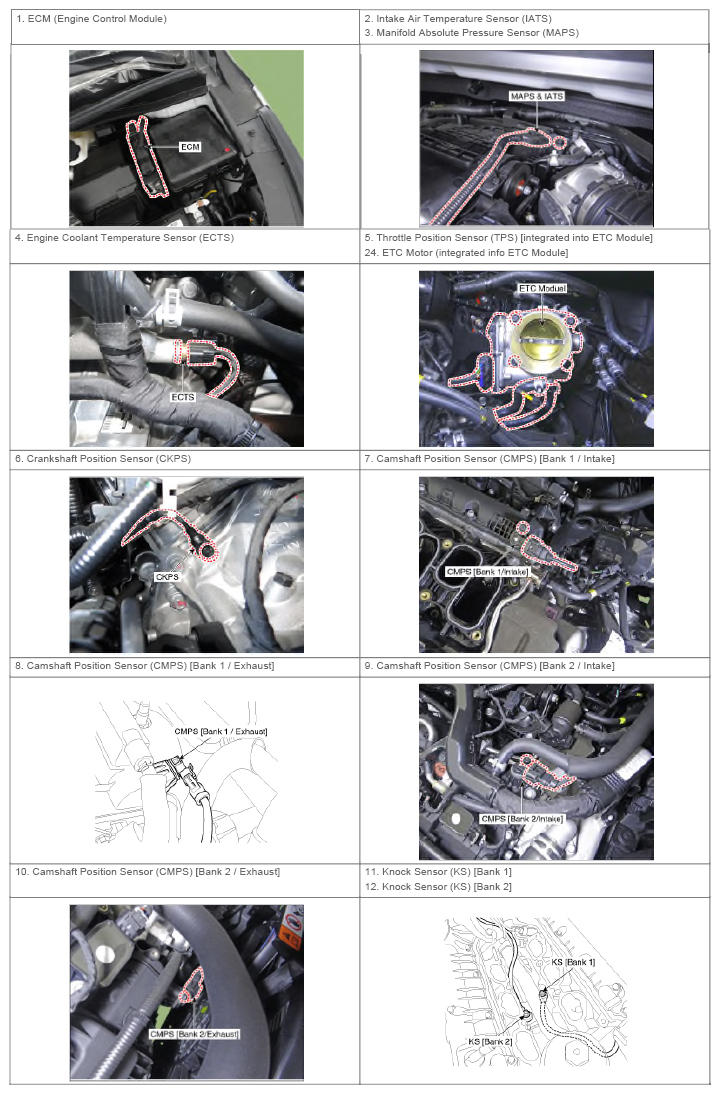

G13044194Courtesy of KIA MOTORS AMERICA, INC.

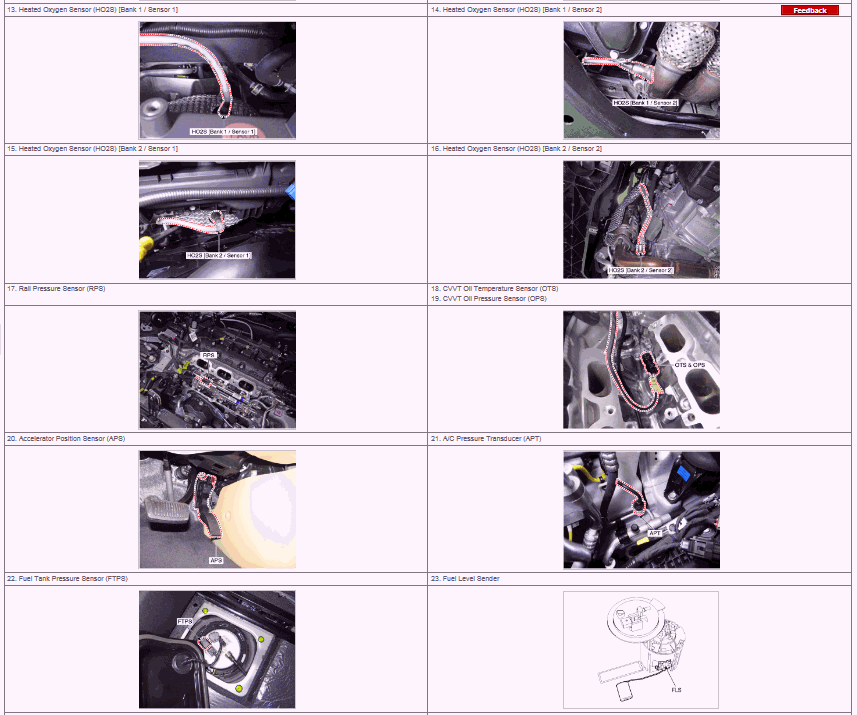

G13044195Courtesy of KIA MOTORS AMERICA, INC.

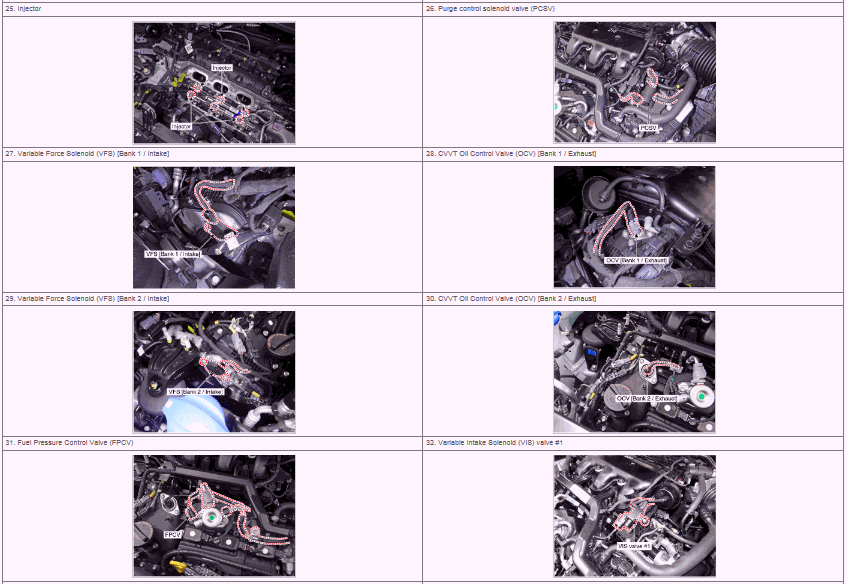

G13044196Courtesy of KIA MOTORS AMERICA, INC.

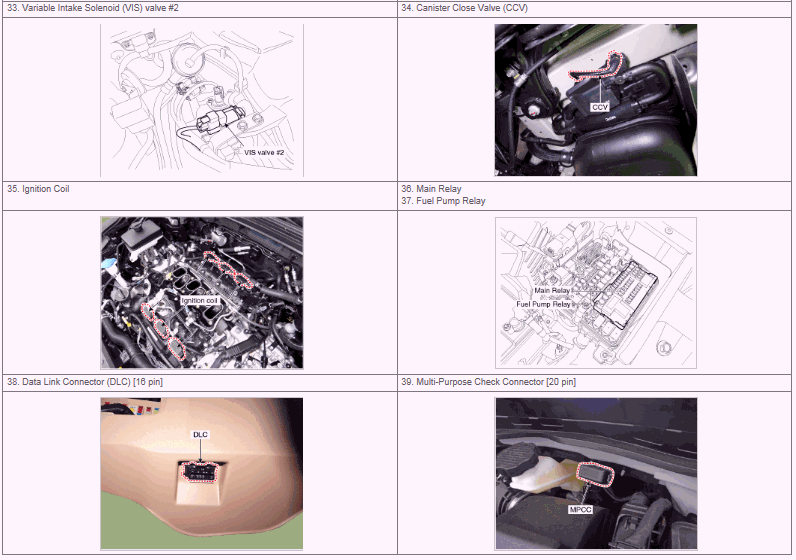

G13044197Courtesy of KIA MOTORS AMERICA, INC.
