Monitor DTC Status

WARNING: This page is about a different car, the 2020 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

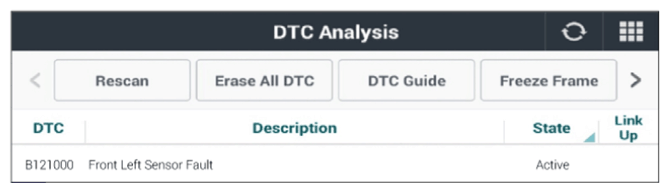

Ignition "ON".	Connect KDS to Data Link Connector (DLC). Monitor "Diagnostic Trouble Codes (DTC)" with KDS.	Figure below

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

Go to "SYSTEM INSPECTION " procedure.

History/Pending Fault

Fault is intermittent caused by poor contact in "BCM" or Parking Assist System (PAS) Sensor
- Front Left Sensor's connector or was repaired and "BCM" memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary, go to "VERIFICATION OF REPAIR " procedure.
