Repair Procedures: Replacement

Information

When removing and installing the tail gate, work in a group of two or more.

1. Remove the tail gate upper trim.

   (Refer to Tail Gate - "TAIL GATE UPPER TRIM ")

2. Remove the tail gate side trim.

   (Refer to Tail Gate - "TAIL GATE SIDE TRIM ")

3. Remove the tail gate trim.

   (Refer to Tail Gate - "TAIL GATE TRIM ")

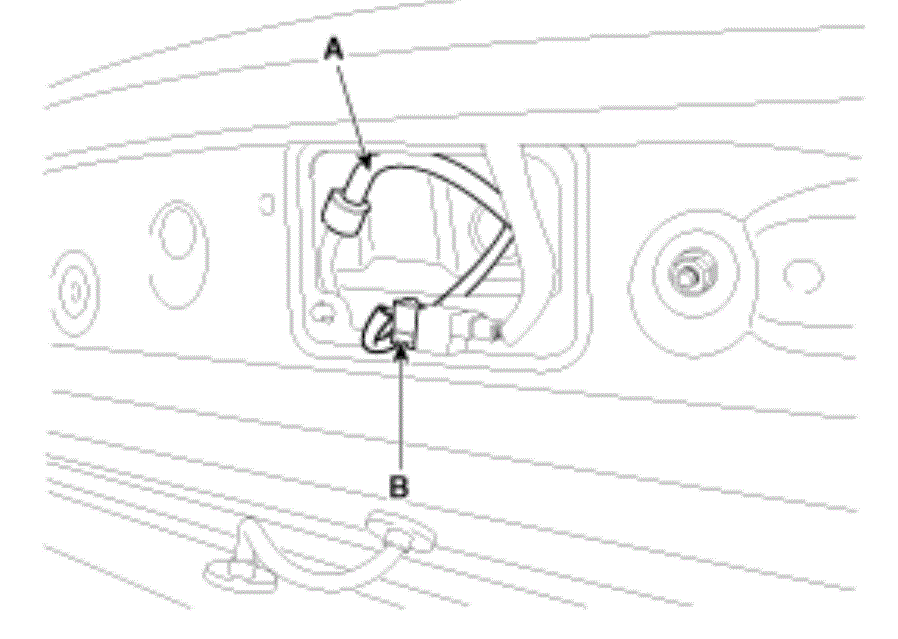

4. Disconnect the washer nozzle hose (A) and high mounted stop lamp connector (B).

   Courtesy of KIA MOTORS AMERICA, INC.

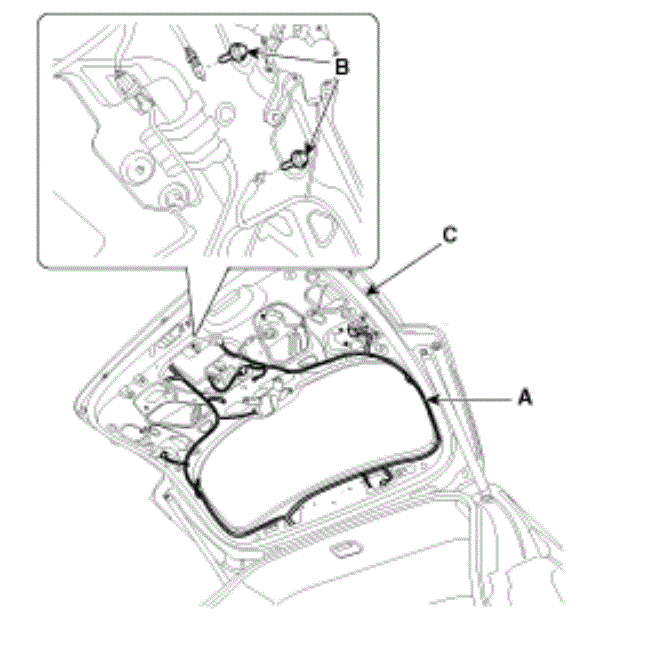

5. Disconnect the connectors and tail gate wiring harness (A).
6. Loosen the ground bolts (B).
7. After loosening the mounting bolts, remove the tail gate assembly (C).

   Tightening torque:

   21.6~26.5 N.m (2.2~2.7 kgf.m, 15.9~19.5 lb-ft)

   Courtesy of KIA MOTORS AMERICA, INC.

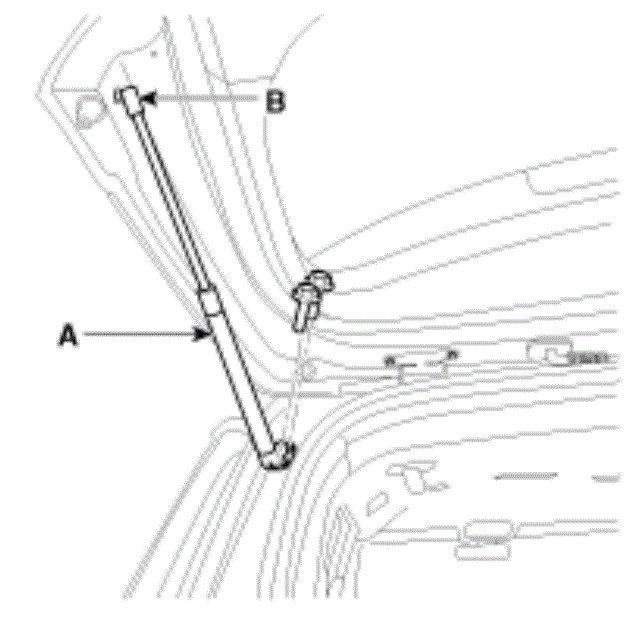

8. Remove the mounting clip (B) and then remove the tail gate lifter (A).

   Tightening torque:

   6.9~10.8 N.m (0.7~1.1 kgf.m, 5.1~8.0 lb-ft)

   Courtesy of KIA MOTORS AMERICA, INC.

   Information

   • Power tail gate type

     (Refer to Body Electrical System - "PTG SPINDLE ")

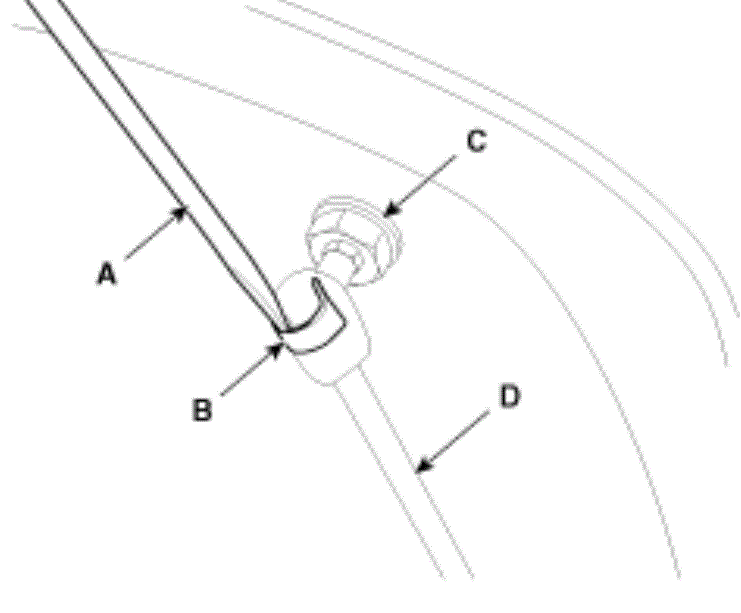

   • Remove the lifter (D) from the bracket (C) by lifting the socket clip (B) gently with a flat head screwdriver (A).

   Courtesy of KIA MOTORS AMERICA, INC.

9. Install in the reverse order of removal.
