Vehicle S/W Management

WARNING: This page is about a different car, the 2020 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

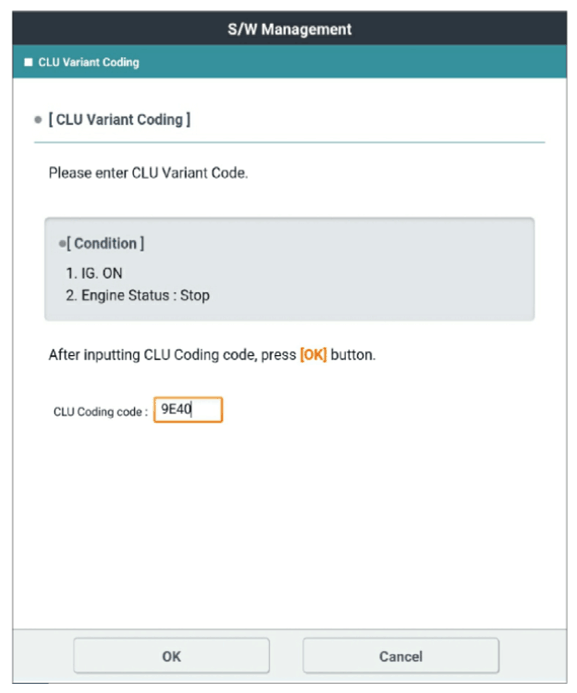

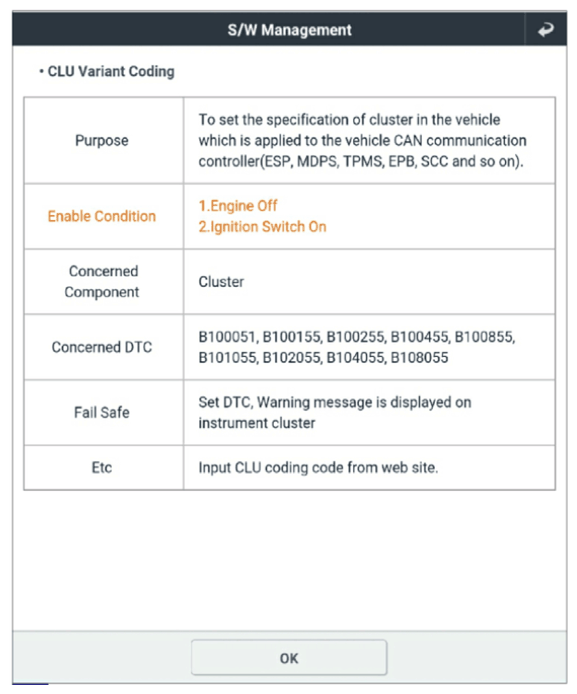

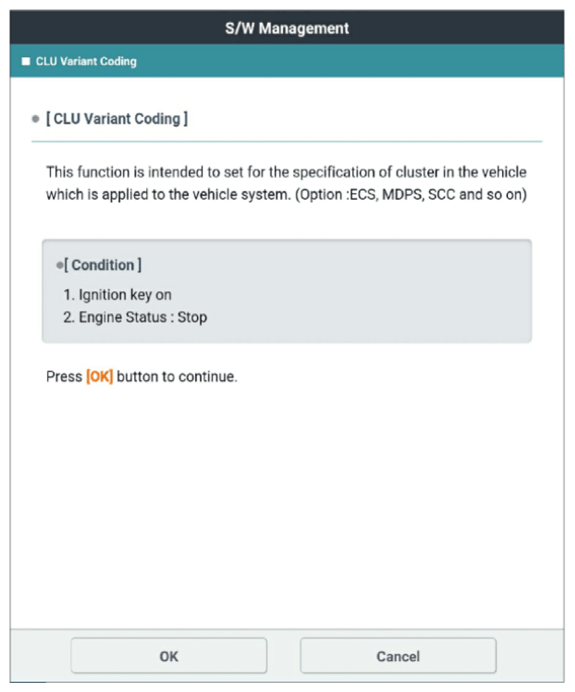

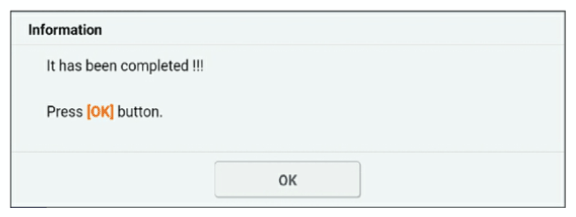

Ignition "ON".	Connect KDS to Data Link Connector (DLC). Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.	Figures below

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

No Good

Replace cluster module and perform "CLU VARIANT CODING " procedure in the "Vehicle S/W Management" with KDS again, and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
