Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2020 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front tire [RH].

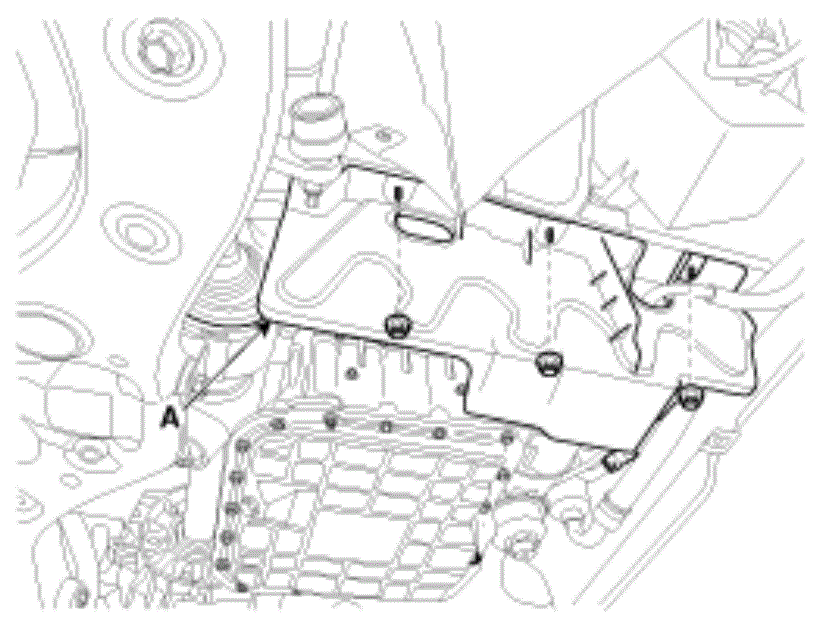

Remove the engine room right side under cover (A) by loosening the mounting nuts.

Courtesy of KIA MOTORS AMERICA, INC.
Loosen the drive belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")

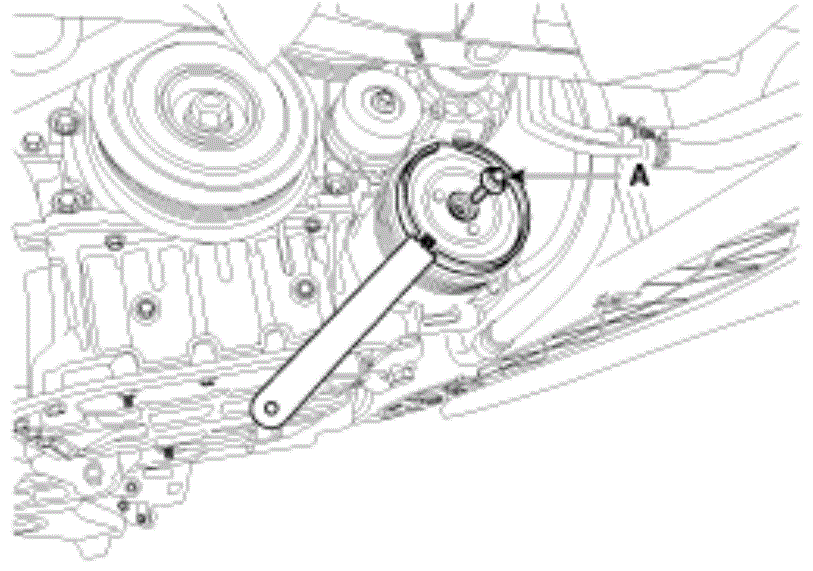

Remove the clutch bolt (A) while holding the pulley with a clutch bolt remover (09977-3R000).
Tightening torque:

10.0 ~ 15.0 N.m (1.02 ~ 1.53 kgf.m, 7.37 ~ 11.0 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

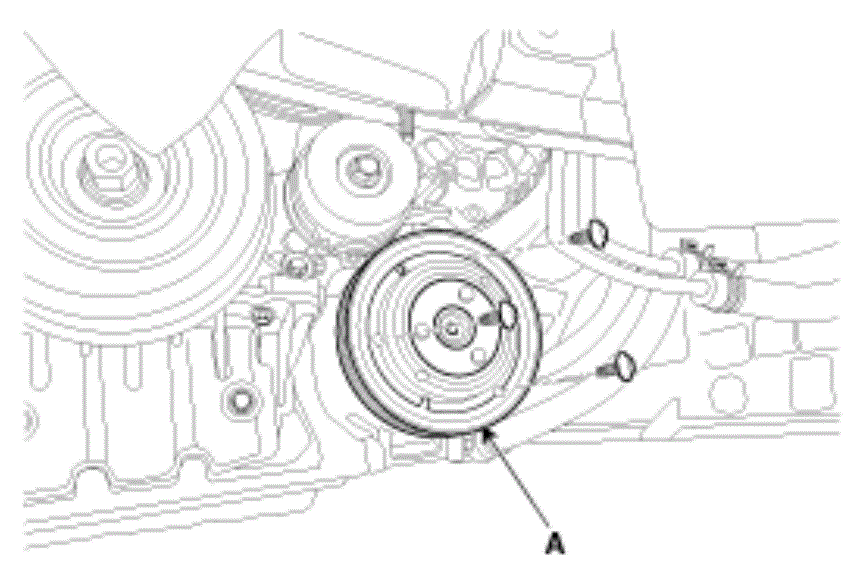

Loosen the limiter bolts and then remove the limiter & hub assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

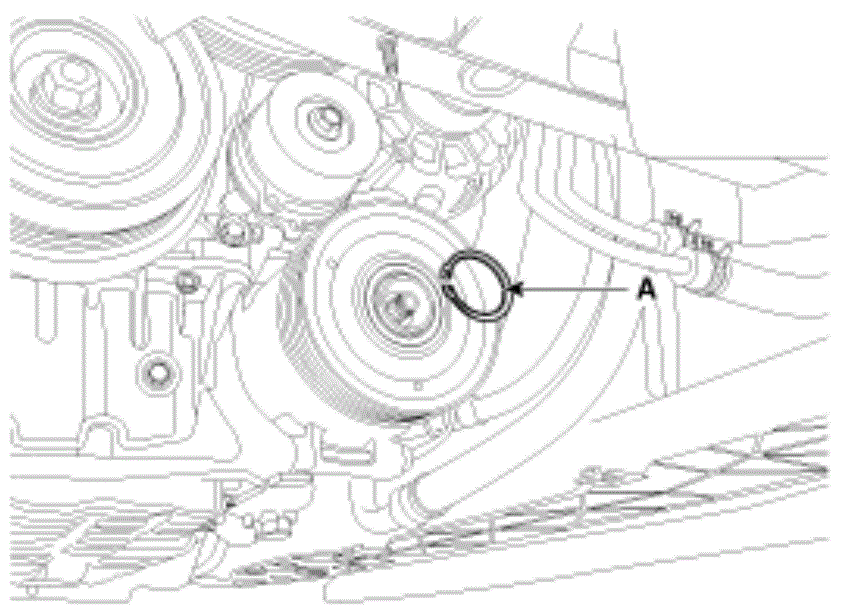

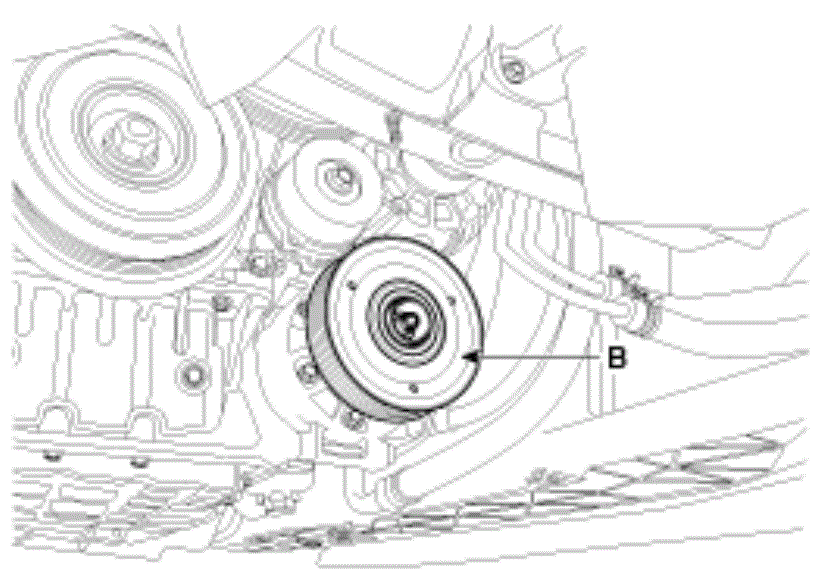

Remove the pulley (B) after removing the snap ring (A) with a snap ring plier.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Be careful not to damage the pulley and compressor during disassembly/reassembly.
- Once the snap ring is removed, replace it with a new one.
Reassemble in the reverse order of disassembly.

NOTE:

Clean the pulley and compressor sliding surfaces with non-petroleum solvent.
Install a new snap ring, and make sure they are fully seated in the groove.
Make sure that the pulley turns smoothly after reassembly.
