Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant with a recovery/recycling/charging station.
  2. Disconnect the negative (-) battery terminal.
  3. Remove the front bumper.

    (Refer to Body - "FRONT BUMPER COVER ")

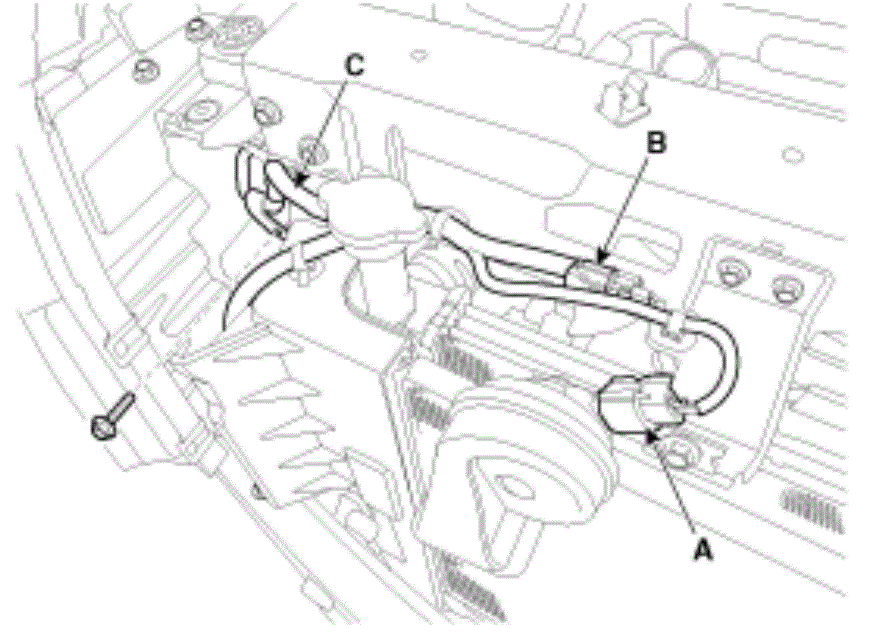

  4. Disconnect the horn connector (A).
  5. Disconnect the hood latch connector (B).
  6. Disconnect the over flow hose (C).
    G13047686Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the cooling fan assembly.

    (Refer to Cooling System - "COOLING FAN ")

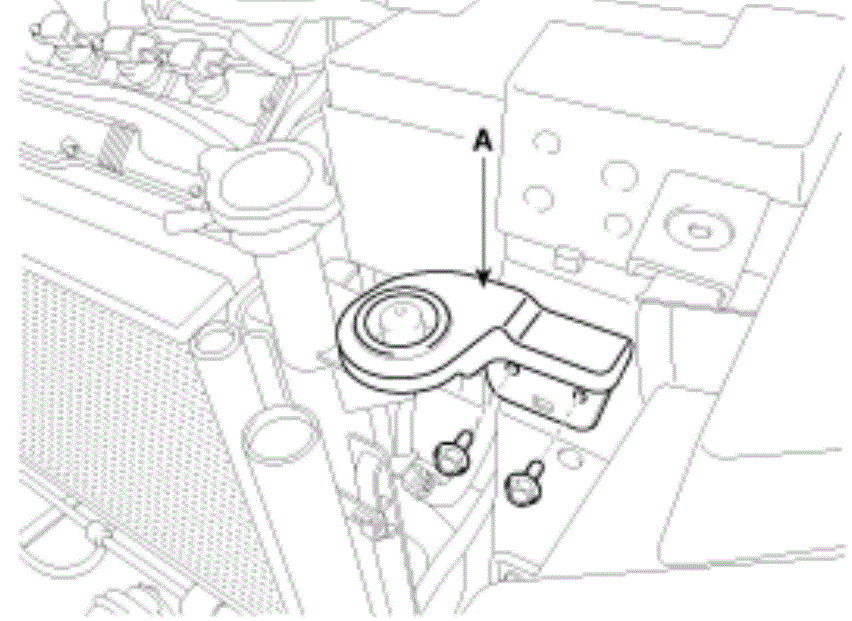

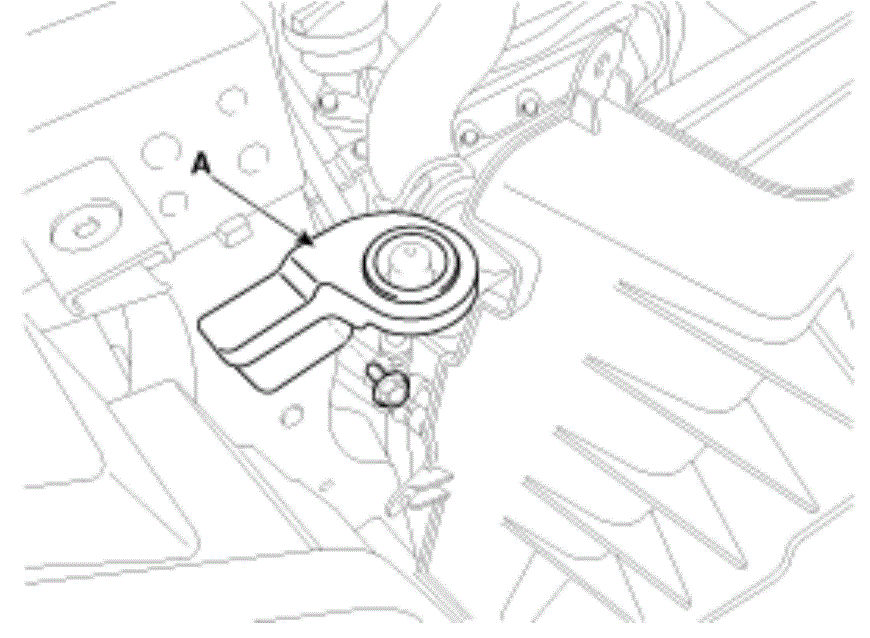

  8. Remove the radiator upper bracket (A).

    [LH]

    G13047687Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G13047688Courtesy of KIA MOTORS AMERICA, INC.

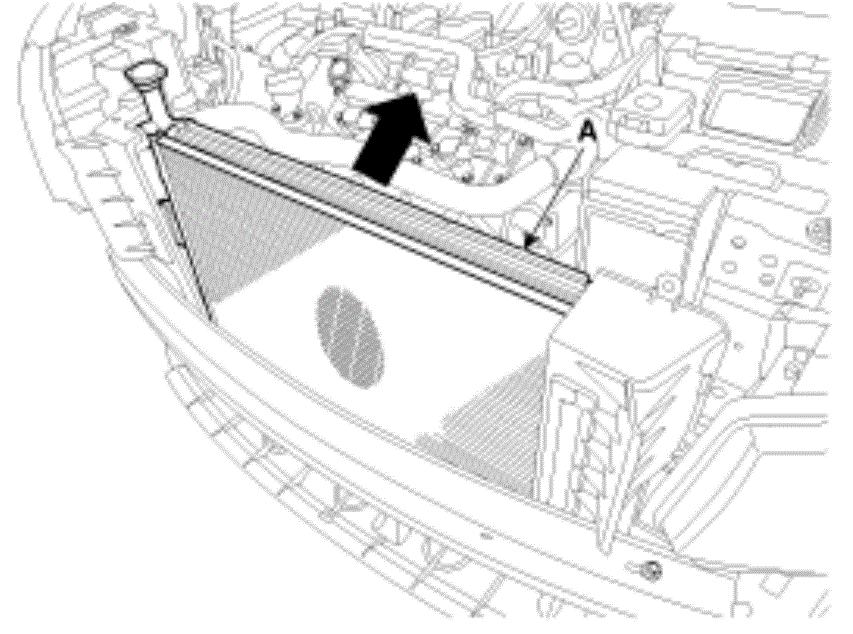

  9. Separate the radiator assembly (A) to obtain space for remove the air guard.
    G13047689Courtesy of KIA MOTORS AMERICA, INC.

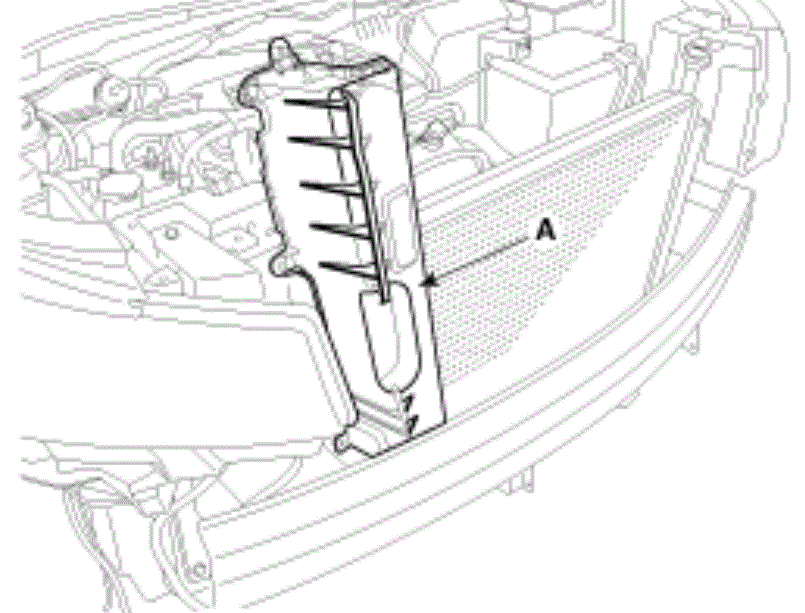

  10. Remove the air guard (A).

    [LH]

    G13047690Courtesy of KIA MOTORS AMERICA, INC.

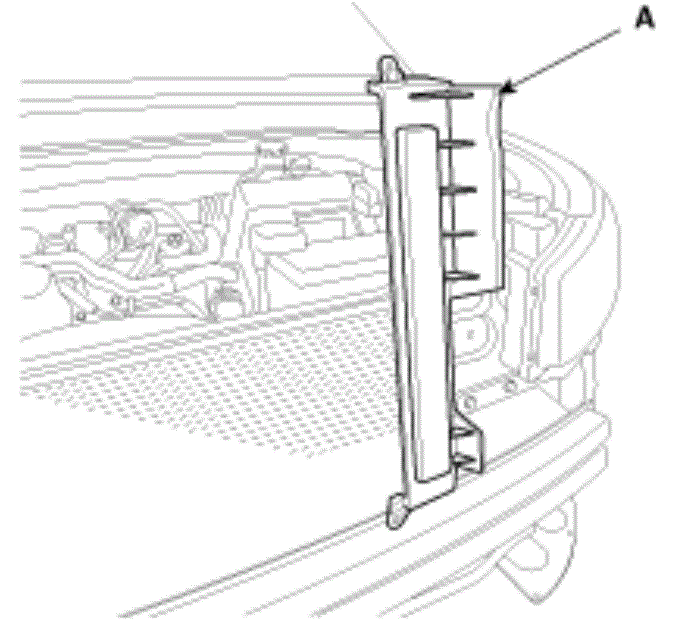

    [RH]

    G13047691Courtesy of KIA MOTORS AMERICA, INC.

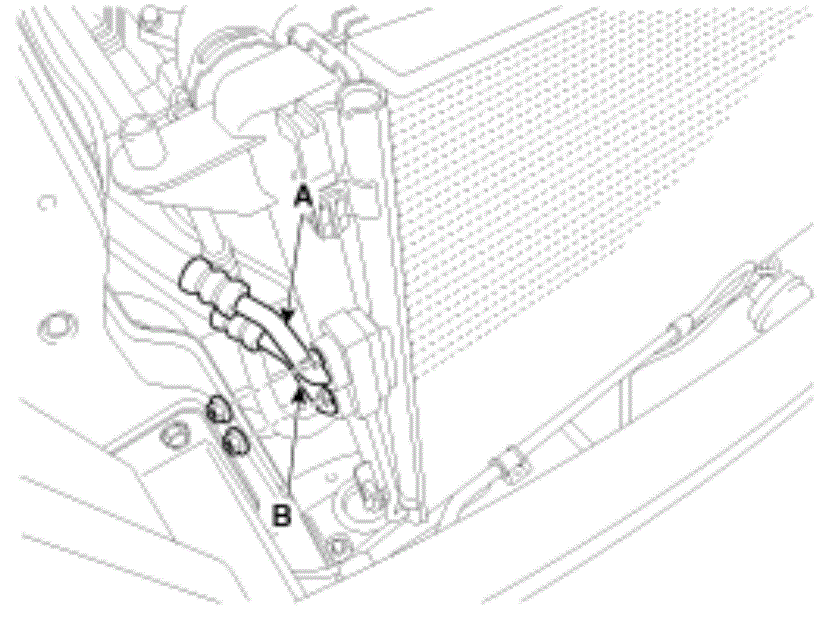

  11. Remove the 2 nuts, and then disconnect the discharge line (A) and liquid line (B) from the condenser.
    G13047692Courtesy of KIA MOTORS AMERICA, INC.

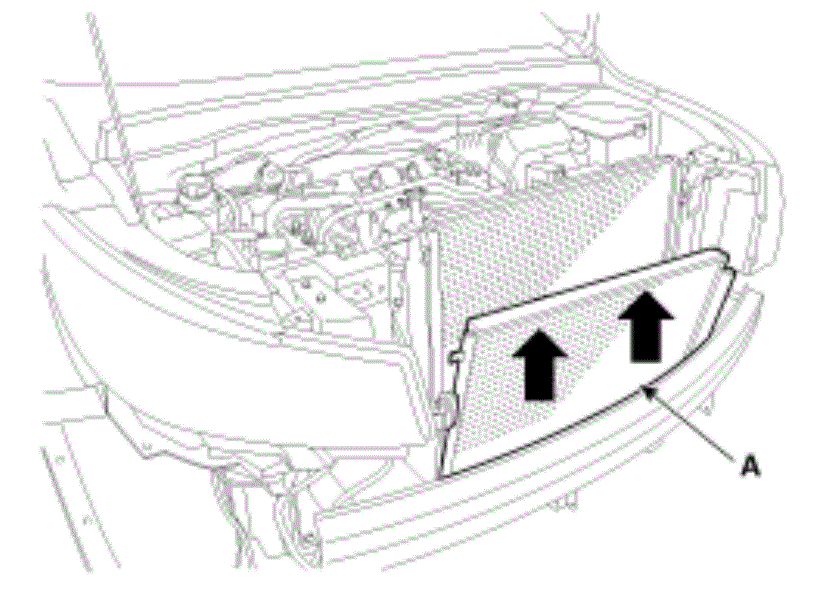

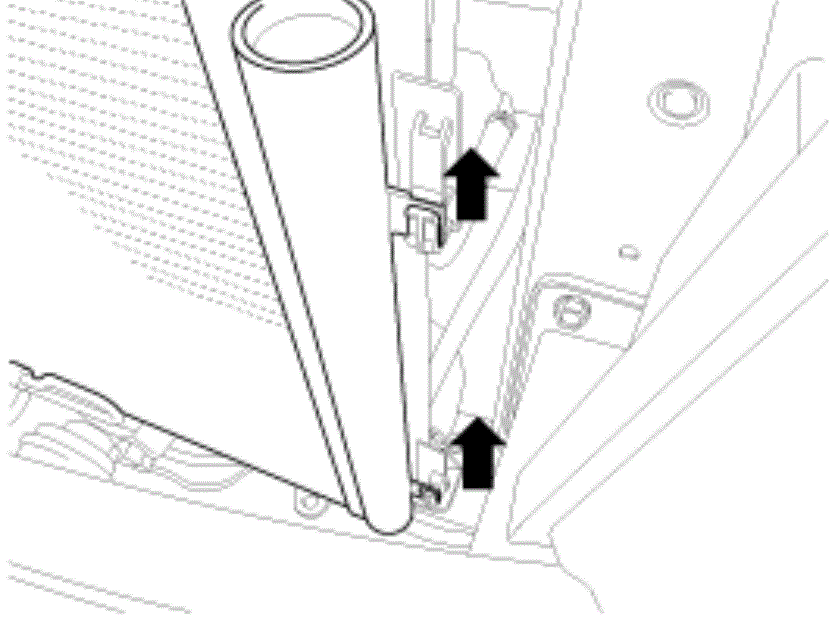

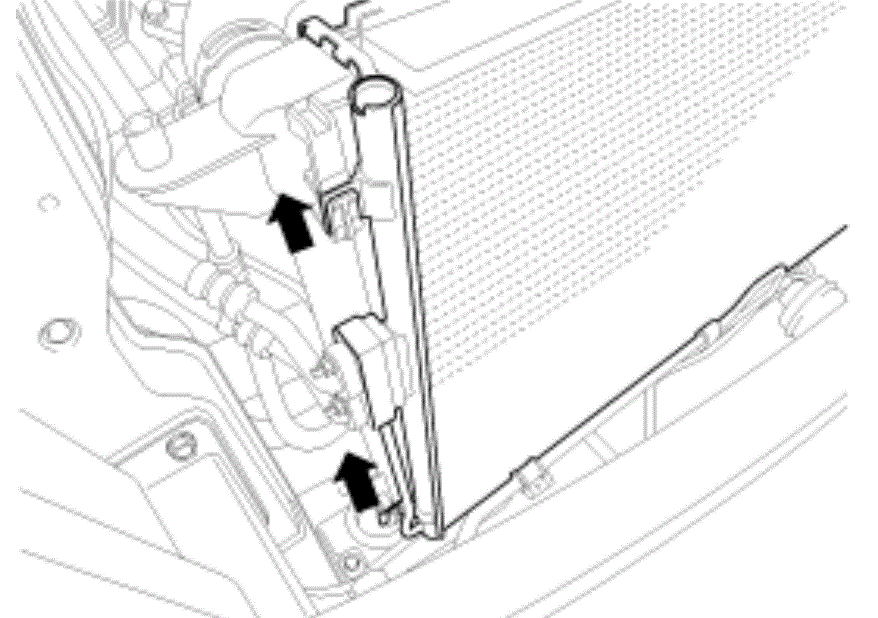

  12. Remove the condenser (A) from the radiator.

    [LH]

    G13047693Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G13047694Courtesy of KIA MOTORS AMERICA, INC.
    G13047695Courtesy of KIA MOTORS AMERICA, INC.
  13. Install in the reverse order of removal.
NOTE:
  • When installing a new condenser, add refrigerant oil.
  • Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-1234yf to avoid leakage.
  • Be careful not to damage the radiator and condenser fins when installing the condenser.
  • Charge the system, and test its performance.
