Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Be careful not to damage the fender and body.

Information

When removing the clips, use a clip remover.

Remove the front bumper cover.
(Refer to Front Bumper - "FRONT BUMPER COVER ")
Remove the head lamps.
(Refer to Body Electrical System - "HEAD LAMPS ")
Remove the delta fixed glass.
(Refer to "DELTA FIXED GLASS ")

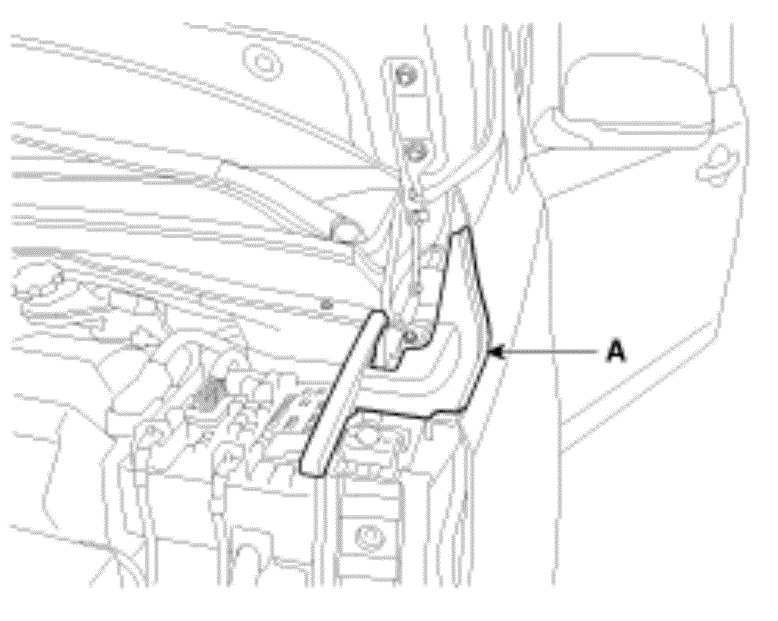

Remove the cowl top side cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

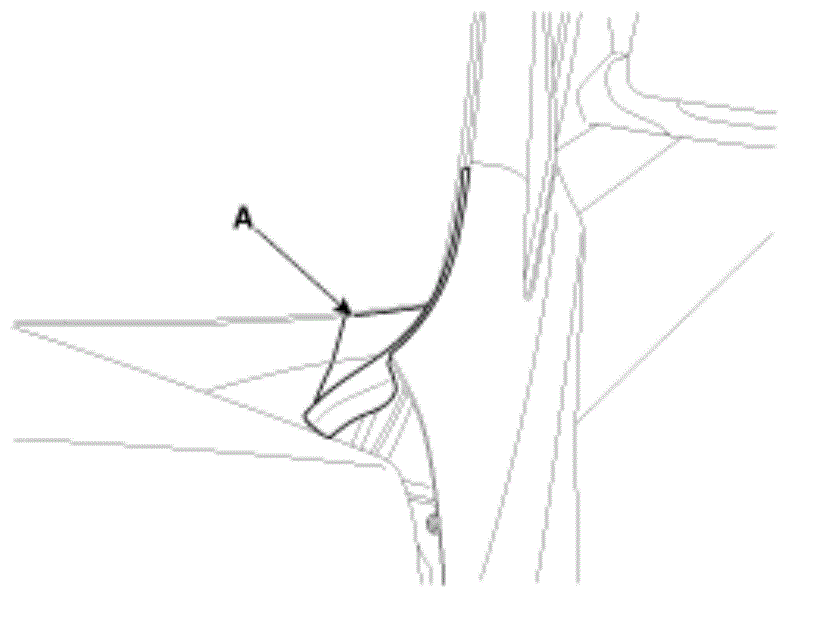

Remove the fender side cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

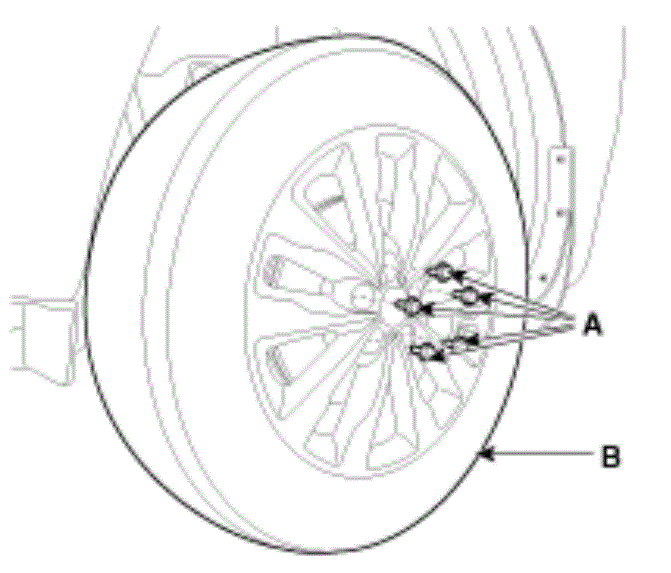

Loosen the wheel nut (A) and remove the wheel (B).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front mud guard.
(Refer to "FRONT MUD GUARD ")

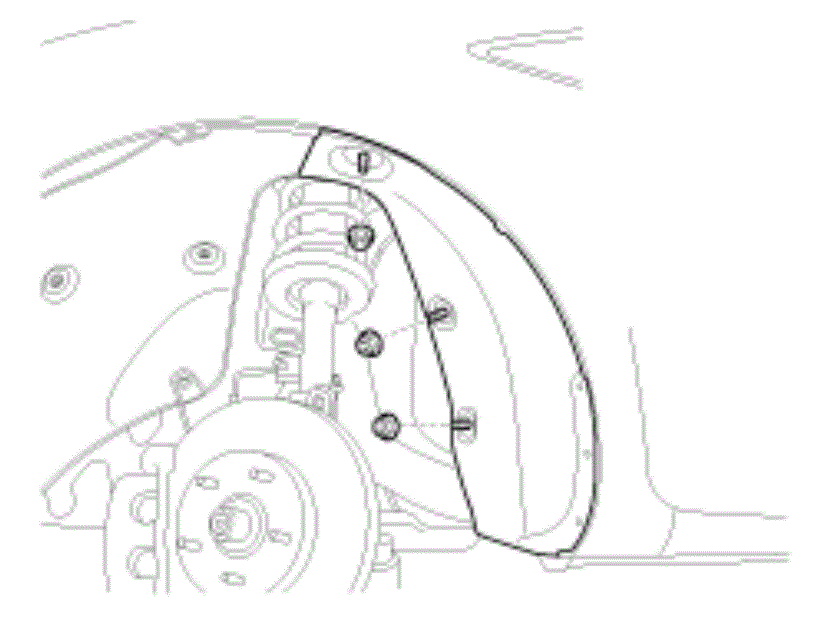

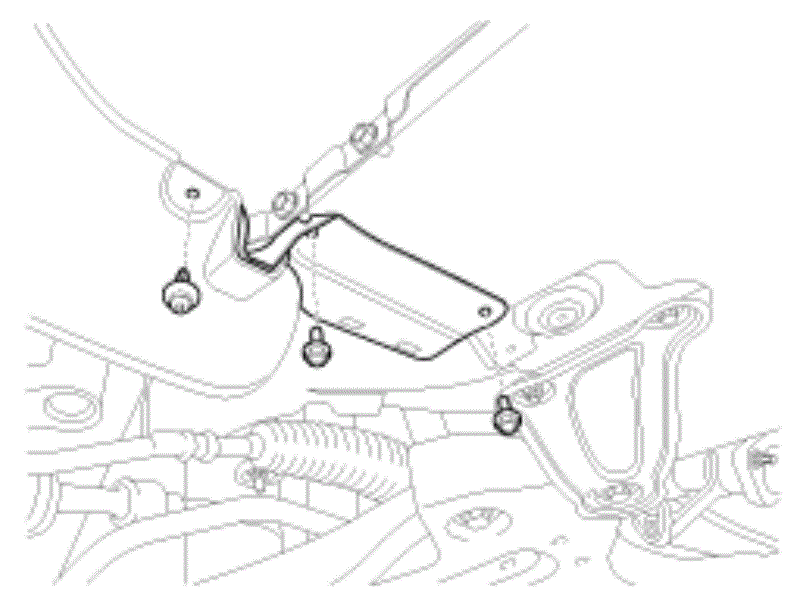

Loosen the front wheel guard mounting clips and screws.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

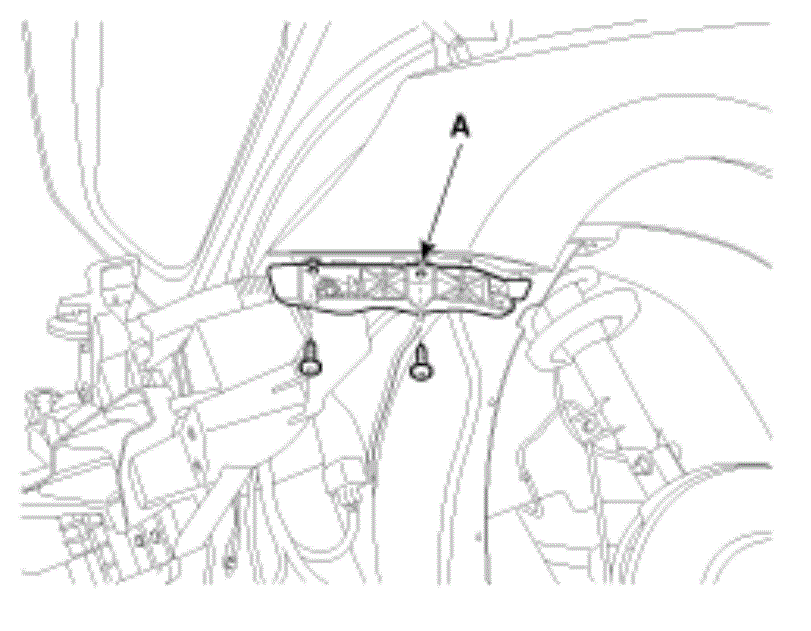

Loosen the screw and remove the front bumper bracket (A).

Courtesy of KIA MOTORS AMERICA, INC.

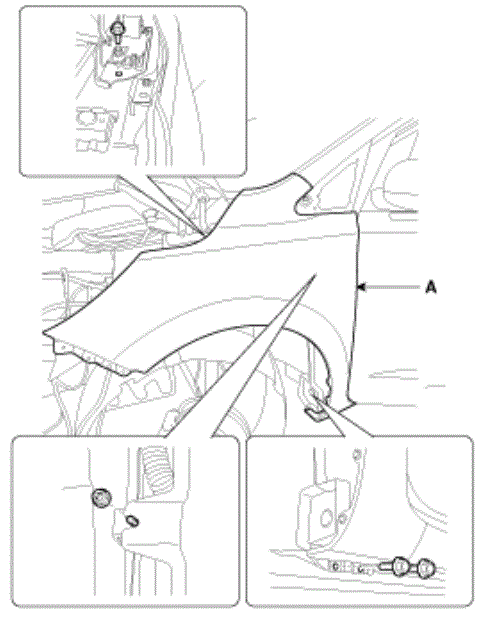

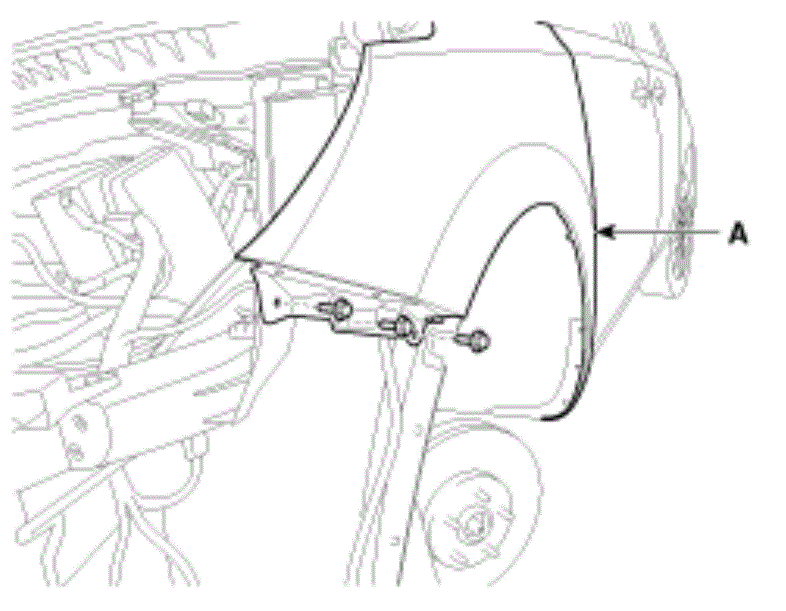

Loosen the bolts & nut and remove the fender (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

Information

Make sure that the connectors are plugged in properly.
Replace any damaged clips.
