Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

[Driver's side]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

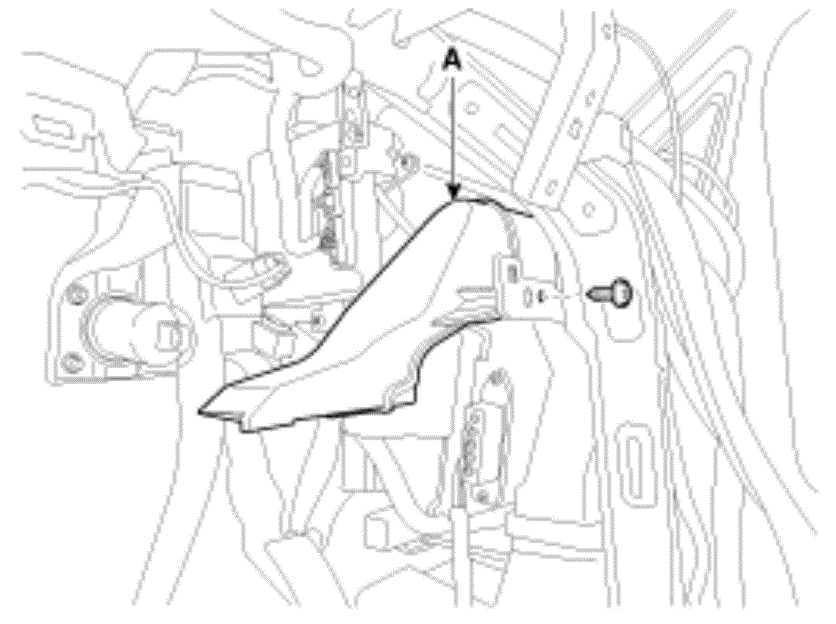

  3. Remove the driver's side shower duct (A) after loosening the screw.
    G13047766Courtesy of KIA MOTORS AMERICA, INC.

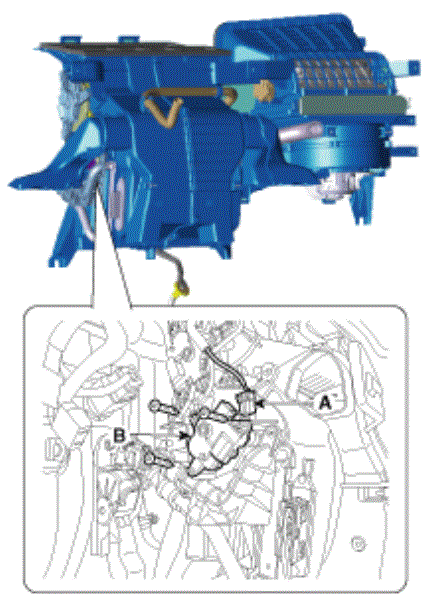

  4. Disconnect the connector (A) and then remove the temperature control actuator (B) after loosening the mounting screws.
    G13047767Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.

[Passenger's side]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX HOUSING ")

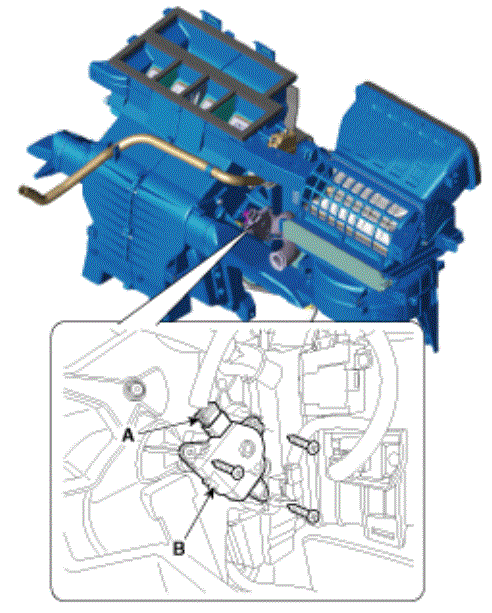

  3. Disconnect the connector (A) and then remove the temperature control actuator (B) after loosening the mounting screws.
    G13047768Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
